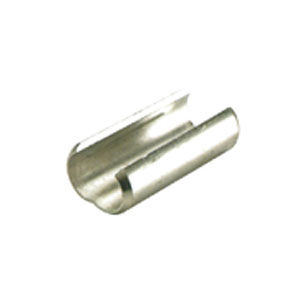

Weak Back Ferrules

MATERIAL - E-Copper

FINISH - Electro Tinned

Cable Terminal
Cable Terminal

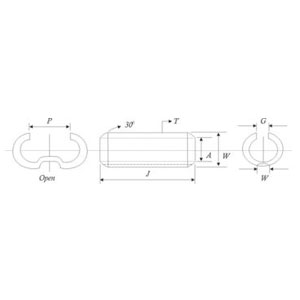

Cable Size mm2 Dimensions in mm Product Code
A C G L T P W
6 3 4.6 2 20 0.8 3 - AWB - 6
10 4.4 6 2 25 0.8 4 - AWB - 10
16 5.5 7.5 2 25 1 5 1.5 AWB - 16
25 7 9 2 30 1 7 1.5 AWB - 25
35 8 10.4 2 35 1.2 8 1.5 AWB - 35
50 9.5 11.9 2 40 1.2 9 1.5 AWB - 50
70 12 14.8 3 45 1.4 12 3 AWB - 70
120 15.5 18.7 4 55 1.6 15 3 AWB - 120
150 17 20.6 4 60 1.8 16 3.4 AWB - 150
185 18.5 22.9 4 65 2.2 18 5 AWB - 185
225 20.5 24.9 5 75 2.2 20 5 AWB - 225
240 22 26.4 5 80 2.2 21 5 AWB - 240
300 24 29.6 5 85 2.8 23 5 AWB - 300
400 28.5 34.7 7 95 3.1 27 5 AWB - 400
500 30.5 37.5 7 105 3.5 30 5 AWB - 500
625 34.5 42.5 8 115 4 33 5 AWB - 625
