Full Tension Connector Up To 36 KV

MATERIAL - E-Copper

FINISH - Electro Tinned

FEATURES - Cable stop facility

APPLICATION- UP TO 36 KV

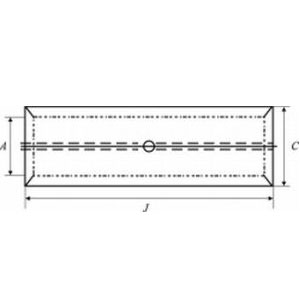

Cable mm2	Dimensions (mm2)			Product Code
Cable mm2	A	C	J	Product Code
6	3.5	6.5	65	ACT - 6
10	4.5	8.5	80	ACT - 10
16	5.5	8.5	95	ACT - 16
25	7	10	95	ACT - 25
35	8.2	12.5	95	ACT - 35
50	10	14.5	110	ACT - 50
70	11.5	16.5	110	ACT - 70
95	13.5	21	145	ACT - 95
120	15	23.5	160	ACT - 120
150	16.5	25.5	180	ACT - 150
185	18.5	31.5	260	ACT - 185
240	21	34.5	310	ACT - 240
300	23.5	38.5	360	ACT - 300
