Non Tension Connector Up To 33 KV

MATERIAL - E-Copper

FINISH - Electro Tinned

FEATURES - UP TO 33 KV

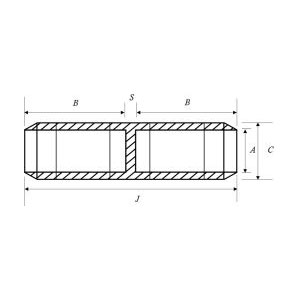

Cable mm2	Dimensions (mm2)					Product Code
Cable mm2	A	C	B	J	S	Product Code
16	5.5	7.5	22.5	47	2	AS - 16
25	7	10	22.5	47	2	AS - 25
35	8.2	11	22.5	47	2	AS - 35
50	9.5	13	25	53	3	AS - 50
70	11.5	15	25	53	3	AS - 70
95	13.5	17.5	25	53	3	AS - 95
120	15.5	20	30	63	3	AS - 120
150	17	22	35	73	3	AS - 150
185	19	24	40	84	4	AS - 185
240	21	26	43	90	4	AS - 240
