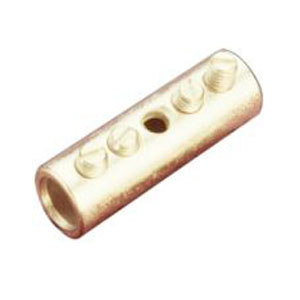

Tinned Screw Sleeves

MATERIAL - E-Copper

FINISH - Electro Tinned

FEATURES - With inspection hole

SCREWS - Zinc plated steel

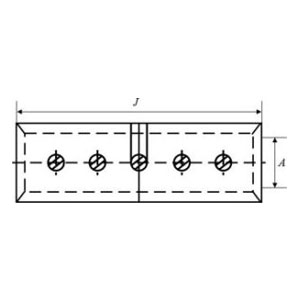

Cable mm2	Dimensions (mm2)		Product Code
Cable mm2	A	J	Product Code
6	3.5	20	ATBSS - 6
10	4.4	30	ATBSS - 10
16	5.5	40	ATBSS - 16
25	6.8	45	ATBSS - 25
35	8.2	45	ATBSS - 35
50	9.5	48	ATBSS - 50
70	11.2	52	ATBSS - 70
95	13.4	55	ATBSS - 95
120	15	55	ATBSS - 120
150	16.5	60	ATBSS - 150
185	19	60	ATBSS - 185
240	21	65	ATBSS - 240
300	23.5	65	ATBSS - 300
