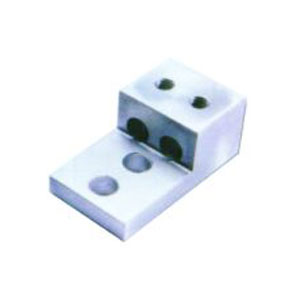

Aluminium Double Barrel Connector

MATERIAL - E-Copper

FINISH - Electro Tinned

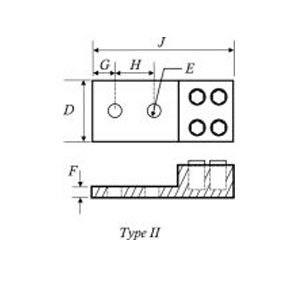

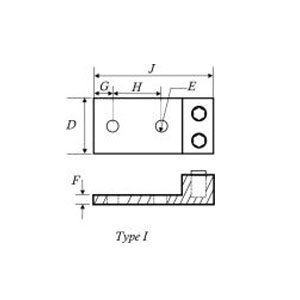

Conductor Range (Al. or Cu.)		Stud Hole	Dimensions in Mm & (Inches)					Type	Product Code
Max	Min	Size	J	D	F	G	H	Type	Product Code
350 KCMIL	6 STR 1	1/2	104.65 (4.12)	48.51 (1.91)	7.87 (0.31)	15.75 (0.62)	44.45 (1.75)	I	AL 2LA - 350
600 KCMIL	4 STR	1/2	141.73 (5.58)	60.96 (2.40)	11.17 (0.44)	15.75 (0.62)	44.45 (1.75)	II	AL 2LA - 600
800 KCMIL	350 KCMIL	1/2	147.82 (5.82)	81.03 (3.19)	12.70 (0.50)	15.75 (0.62)	44.45 (1.75)	II	AL 2LA - 800
