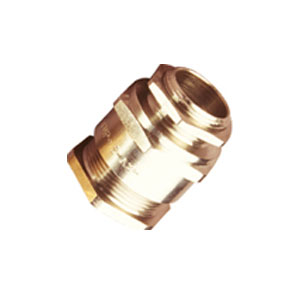

A2 Industrial Cable Gland

Our Products

Cable Glands

A2 Industrial Cable Gland

Application

For use with unarmoured cables with rubber outer sheath. Secures outer sheath of cable. Displacement seal concept makes it suitable for Indoor & Outdoor application.

Design Features

* Outer displacement seal

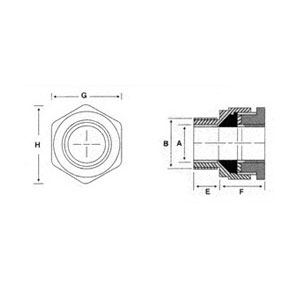

Size	Cable Dimensions Accommodated		Gland Dimensions					Product Code
	Overall Diameter A		ISO Entry Thread		Approx Length From Shoulders	Hexagon Size Across Across
	Overall Diameter A		Dia.	Length	Approx Length From Shoulders	Flat	Corners
	Min. mm	Max. mm	B mm	E mm	F mm	G mm	H mm
16	4.5	8.5	16	10	20	20	23	AA2 - 16
20 S	8	11.5	20	10	22	22	25	AA2 - 20 S
20	11	14	20	10	22	22	25	AA2 - 20
25 S	14	17.5	25	10	25	30	34	AA2 - 25 S
25	17.5	20.4	25	10	26	30	34	AA2 - 25
32	20	26	32	10	30	36	40	AA2 - 32
40 S	26	30	40	10	31	46	52	AA2 - 40 S
40	30	33	40	15	31	46	52	AA2 - 40
50 S	33	38	50	15	33	55	61	AA2 - 50 S
50	38	44	50	15	33	56	62	AA2 - 50
63 S	44	50.5	63	15	35	70	77.5	AA2 - 63 S
63	50.5	56	63	15	35	70	77.5	AA2 - 63
75 S	56.5	62	75	15	35	80	89	AA2 - 75 S
75	62	68	75	15	40	80	89	AA2 - 75
90	68	78	90	20	45	100	112	AA2 - 90
100	78	88	100	20	45	112	125	AA2 - 100
