BW Industrial Gland (2 PART)

Application

For use with armour or braided cable, secures armouring and provides electrical continuity between armour and gland entry component mainly used in dry and indoor condition.

Design Features

* 2 part armour lock

* Knurled armour lock produces a low resistance earth clip

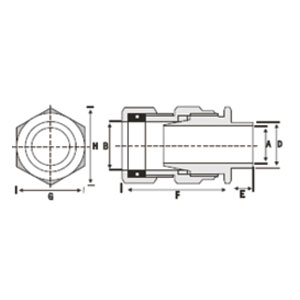

Size	Cable Dimensions Accommodated			Gland Dimensions					Product Code
	Under Armour Dia A Max. mm	Overall Dia. B Max.mm	Armour Wire Diameter Cmm	ISO Entry Thread		Approx Length From Shoulder	Hexagon size
							Hexagon size
							Across	Across
				Dia.	Length		Flat	Corners
				Dmm	Emm	Fmm	Gmm	Hmm
16	8.6	13.5	0.9	16	10	40	20	23	ABW-16
20 S	12.5	17	0.90/1.25	20	10	42	24	28	ABW-20 S
20	14.4	20.5	0.90/1.25	20	10	42	27	31	ABW-20
25 S	17.8	23.8	1.25/1.60	25	10	44	31	34	ABW-25 S
25	20.4	27	1.25/1.60	25	10	48	34.3	38.5	ABW-25
32	26.5	33	1.60/2.00	32	10	50	41.5	46.5	ABW-32
40 S	31	37	1.60/2.00	40	10	51	45	50	ABW-40 S
40	32.5	40.8	1.60/2.00	40	15	51	49	54	ABW-40
50 S	37.8	48	2.00/2.50	50	15	58	58	65	ABW-50 S
50	44	53.5	2.00/2.50	50	15	58	62.3	69.5	ABW-50
63 S	50.5	60.5	2.5	63	15	59	70	78	ABW-63 S
63	56.5	65.5	2.5	63	15	59	76.3	85	ABW-63
75 S	62.5	72	2.5	75	15	64	85	95	ABW-75 S
75	67.5	78.5	2.50/3.15	75	15	65	90.5	99	ABW-75
90	80	94	3.15	90	20	75	112	125	ABW-90
