CW Cable Gland (3 PART)

CW Cable Gland (3 PART)

Home
Products
CW Cable Gland (3 PART)

Our Products

Cable Glands

CW Cable Gland (3 PART)

Application

For use with Armour cable, secures armouring & provides electrical continuity between armour and gland entry component. Also provides a seal on the outer sheath of the cable thus ensuring no damage to cable sheathing. These are used both indoor & outdoor, in all climatic conditions as it is weatherproof & waterproof.

Design Features

* 2 part armour/earth lock

* Knurled armour lock produces a low resistance earth clip

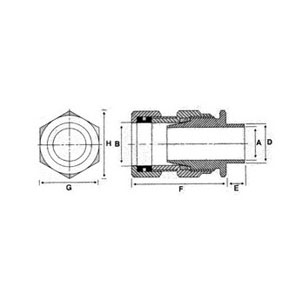

Size	Cable Dimensions Accommodated			Gland Dimensions					Product Code
	Under Armour Dia A Max. mm	Overall Dia B Max. mm	Armour Wire Diameter Cmm	ISO entry Thread		Approx Length From Shoulder	Hexagon size
							Hexagon size
							Across	Across
				Dia.	Length		Flat	Corners
				Dmm	Emm	Fmm	Gmm	Hmm
16	8.6	13.5	0.9	16	10	40	20	23	ACW-16
20 S	12.5	17	0.90/1.25	20	10	42	24	28	ACW-20 S
20	14.4	20.5	0.90/1.25	20	10	42	27	31	ACW-20
25 S	17.8	23.8	1.25/1.60	25	10	44	31	34	ACW-25 S
25	20.4	27	1.25/1.60	25	10	45	34.3	38.5	ACW-25
32	26.5	33	1.60/2.00	32	10	50	41.5	46.5	ACW-32
40 S	31	37	1.60/2.0	40	10	51	45	50	ACW-40 S
40	32.5	40.8	1.60/2.00	40	15	51	49	54	ACW-40
50 S	37.8	48	2.00/2.50	50	15	55	58	65	ACW-50 S
50	44	53.5	2.00/2.50	50	15	55	62.3	69.5	ACW-50
63 S	50.5	60.5	2.5	63	15	59	70	78	ACW-63 S
63	56.5	65.5	2.5	63	15	59	76.3	85	ACW-63
75S	62.5	72	2.5	75	15	64	85	95	AB-CW-75 S
75	67.5	78.5	2.50/3.15	75	15	65	90.5	99	ACW-75
90	80	94	3.15	90	20	75	112	125	ACW-90
