Brass Cable Glands & Glands Accessories

G Type Gland

Application

For use with SWA Plastic & Rubber sheathed cable. Used in dry indoor condition. Inner ring ensures positive armour clap and earth continuity.

Design Features

* Nickel Plated

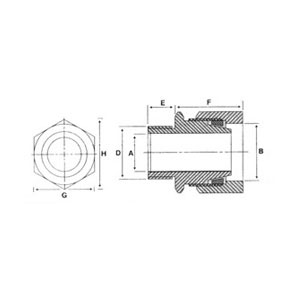

Size Cable Dimensions Accommodated Gland Dimensions Product Code
Under Armour Diameter A Max. mm Overall Diameter B Max. mm Armour Wire Diameter Cmm ISO entry thread Approx Length From Shoulder Hexagon Size
Dia.
 Length Across Across
Flat Corners
Dmm Emm Fmm Gmm Hmm
204 15.8 15.8 0.90/1.25 20 10 24 22 24.9 AG  204
206 21.0 21.0 0.90/1.25 20 10 25 27 30 AG - 206
254 23.8 23.8 1.25/1.60 25 10 26 31.7 35.7 AG - 254
256 27.2 27.2 1.25/1.60 25 10 26 37.6 42.2 AG - 256
324 33.2 33.2 1.60/2.00 32 10 28 47.3 53.6 AG - 324
326 39.2 39.2 1.60/2.00 40 15 25 48.4 54.6 AG - 326
405 39.9 39.9 1.60/2.00 40 15 25 50 57 AG - 405
503 51.6 51.6 2.00/2.50 50 15 36 58 64.2 AG - 503
505 52.6 52.6 2.00/2.50 50 15 36 65 71.2 AG - 505
636 61.0 61.0 2.50 63 15 30 71 77.5 AG - 636
753 71.3 71.3 2.50 75 15 40 85 95 AG - 753
755 78.0 78.0 2.50 75 15 40 98 109.2 AG - 755
