E1W Brass Gland

Application

For use with all types of SWA extruded bedding cable where it is essential to produce IP 66 seal on to the outer sheath and also produce an IP 66 or explosion proof seal on inner sheath. It provides seals on to both inner sheath & outer sheath of the cable.

Design / Features

* 2 part armor / earth lock * Knurled armor lock produces a low resistance earth clip * Inner & outer displacement seal * Rated at IP 66 in conjunction with entry thread seal

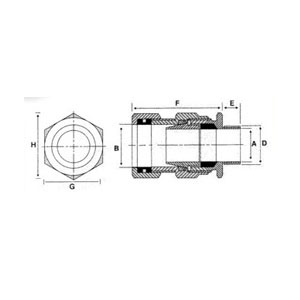

Size	Cable Dimensions Accommodated			Gland Dimensions					Product Code
	Under Armour Dia A Max. mm	Overall Dia B Max. mm	Armour Wire Diameter Cmm	ISO Entry Thread		Approx Length From Shoulder	Hexagon size Across Across
				Dia.	Length	Approx Length From Shoulder	Flat	Corners
				Dmm	Emm	Fmm	Gmm	Hmm
16	8.6	13.5	0.9	16	10	40	20	23	AE1W - 16
20 S	12.5	17	0.90/1.25	20	10	42	24	28	AE1W - 20 S
20	14.4	20.5	0.90/1.25	20	10	42	27	31	AE1W - 20
25 S	17.8	23.8	1.25/1.60	25	10	44	31	34	AE1W - 25 S
25	20.4	27	1.25/1.60	25	10	45	34.3	38.5	AE1W - 25
32	26.5	33	1.60/2.00	32	10	50	41.5	46.5	AE1W - 32
40 S	31	37	1.60/2.00	40	10	51	45	50	AE1W - 40 S
40	32.5	40.8	1.60/2.00	40	15	51	49	54	AE1W - 40
50 S	37.8	48	2.00/2.50	50	15	55	58	65	AE1W - 50 S
50	44	53.5	2.00/2.50	50	15	55	62.3	69.5	AE1W - 50
63 S	50.5	60.5	2.5	63	15	59	70	78	AE1W - 63 S
63	56.5	65.5	2.5	63	15	59	76.3	85	AE1W - 63
75 S	62.5	72	2.5	75	15	64	85	95	AE1W - 75 S
75	67.5	78.5	2.50/3.15	75	15	65	90.5	99	AE1W - 75
90	80	94	3.15	90	20	75	112	125	AE1W - 90
