Cable Lugs & Terminals

Cable Lugs & Terminals

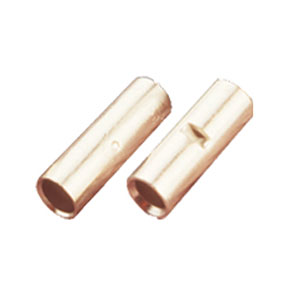

Long Barrel Connectors

MATERIAL - E-Copper

FINISH - Electro Tinned

FEATURES - Cable stop facility

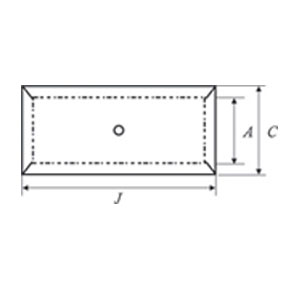

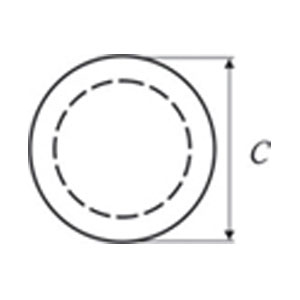

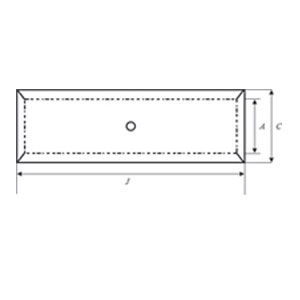

Cable mm2 Dimensions (mm2) Product Code
A C J
1.5 1.8 3.7 22 AC - 1.5
2.5 2.4 4 22 AC - 2.5
4 3.1 4.8 22 AC - 4
6 3.8 5.5 22 AC - 6
10 4.5 6.2 22 AC - 10
16 5.4 7.1 44 AC - 16
20 6.3 7.7 44 AC - 20
25 6.8 8.8 47 AC - 25
35 8.2 10.6 47 AC - 35
50 9.5 12.4 47 AC - 50
70 11.2 14.7 50 AC - 70
95 13.5 17.4 54 AC - 95
120 15 19.4 65 AC - 120
150 16.5 21.2 65 AC - 150
185 18.5 23.5 65 AC - 185
240 21 26.5 89 AC - 240
300 23.5 30 89 AC - 300
400 28.5 36.5 90 AC - 400
500 30 39 115 AC - 500
550 31.7 41.5 115 AC - 550
630 35 45 115 AC - 630
800 39 50.6 230 AC - 800
1000 43 56.2 230 AC - 1000
