Our Products

Cable Lugs & Terminals

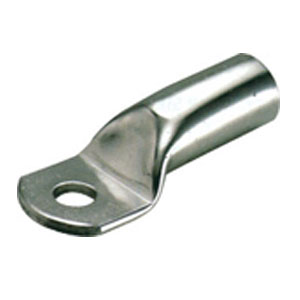

Tinned Copper Tubular Cable Lugs Without Inspection Hole N Series

MATERIAL - E-Copper

FINISH - Electro Tinned

FEATURES - With or without inspection hole

Cable Terminal
Cable Terminal
Cable Terminal

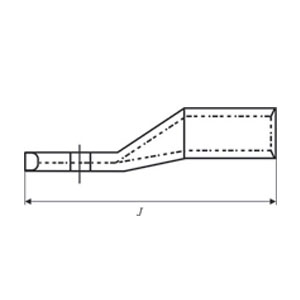

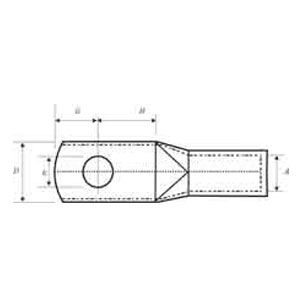

Cable mm2 Stud Hole E Dimensions in mm Product Code
A C D B K G H J
2.5 5.3 2.4 4 10 8 3 5 6 22 ANL 2.5 - 5
4 5.3 3.1 4.8 10 8 3 5 6 22 ANL 4 - 5
6 5.3 3.8 5.5 10 9 3 5 6 23.5 ANL 6 - 5
  6.5 3.8 5.5 10 9 3 6 5 23.5 ANL 6 - 6
  8.5 3.8 5.5 12 9 3 7 8 28 ANL 6 - 8
  10.5 3.8 6 14.5 9 3 8 14 33 ANL 6 - 10
  13 3.8 6 17 9 3 12 13 36 ANL 6 - 12
10 5.3 4.5 6.2 10 10 3 6 7 26 ANL 10 - 5
  6.5 4.5 6.2 10.5 10 3 6 7 26.5 ANL 10 - 6
  8.5 4.5 6.2 12 10 3 7 9 28 ANL 10 - 8
  10.5 4.5 7 15 10 3 8 13 34 ANL 10 - 10
  13 4.5 7 17 10 3 12 13 40 ANL 10 - 12
16 5.3 5.4 7.1 10.5 13 4 6.5 7 31 ANL 16 - 5
  6.5 5.4 7.1 10.5 13 4 6.5 7 31 ANL 16 - 6
  8.5 5.4 7.1 12 13 4 7 9 32 ANL 16 - 8
  10.5 5.5 7.6 15 13 4 8 13 38 ANL 16 - 10
  13 5.5 7.6 17 13 4 12 13 42 ANL 16 - 12
25 5.3 6.8 8.8 13 13 5 6.5 7 32 ANL 25 - 5
  6.5 6.8 8.8 13 13 5 6.5 7 32 ANL 25 - 6
  8.5 6.8 8.8 13 13 5 6 9 32 ANL 25 - 8
  10.5 6.8 8.8 15 13 5 8 13 38 ANL 25 - 10
  13 6.8 9.5 18 13 5 11 14 42 ANL 25 - 12
  15 6.8 9.5 21 13 5 13 14 45 ANL 25 - 14
35 6.5 8.2 10.6 15 15 7 7 9 37.5 ANL 35 - 6
  8.5 8.2 10.6 15 15 7 9 11 42 ANL 35 - 8
  10.5 8.2 10.6 15 16 8 9 15 48 ANL 35 - 10
  13 8.2 10.6 17 15 8 14 14 53 ANL 35 - 12
  15 8.2 10.6 20 15 8 14 14 53 ANL 35 - 14
50 6.5 9.5 12.4 17.5 17 7 9 11 44 ANL 50 - 6
  8.5 9.5 12.4 17.5 17 7 9 11 44 ANL 50 - 8
  10.5 9.5 12.4 17.5 17 8 12 12 49 ANL 50 - 10
  13 9.5 12.4 20.5 17 8 14.5 14 53 ANL 50 - 12
  15 9.5 12.4 23 17 8 14.5 15 54 ANL 50 - 14
70 6.5 11.2 14.7 21 21 7 10 10 48 ANL 70 - 6
  8.5 11.2 14.7 21 21 7 10 10 48 ANL 70 - 8
  10.5 11.2 14.7 21 21 8 12 12 51.5 ANL 70 - 10
  13 11.2 14.7 21 21 8 13 13 55 ANL 70 - 12
  15 11.2 14.7 22 21 10 15 17 61 ANL 70 - 14
95 8.5 13.5 17.4 25 23 8 12 12 55 ANL 95 - 8
  10.5 13.5 17.4 25 24 8 12 12 55 ANL 95 - 10
  13 13.5 17.4 25 24 8 13 13 59 ANL 95 - 12
  15 13.5 17.4 25 24 10 15 17 67 ANL 95 - 14
  17 13.5 17.4 26 24 10 16 16 67 ANL 95 - 16
  21 13.5 17.4 28 24 10 16 17 68 ANL 95 - 20
120 8.5 15 19.4 28 24 - - - 65 ANL 120 - 8
  10.5 15 19.4 28 24 - - - 65 ANL 120 - 10
  13 15 19.4 28 24 - - - 65 ANL 120 - 12
  15 15 19.4 28 24 - - - 68 ANL 120 - 14
  17 15 19.4 28 24 - - - 68 ANL 120 - 16
  21 15 19.4 28 24 - - - 68 ANL 120 - 20
150 8.5 16.5 21.2 30 30 - - - 69 ANL 150 - 8
  10.5 16.5 21.2 30 30 - - - 69 ANL 150 - 10
  13 16.5 21.2 30 30 - - - 72 ANL 150 - 12
  15 16.5 21.2 30 30 - - - 72 ANL 150 - 14
  17 16.5 21.2 30 30 - - - 72 ANL 150 - 16
  21 16.5 21.2 30 30 - - - 72 ANL 150 - 20
185 10.5 19 23.5 34 30 - - - 82 ANL 185 - 10
  13 19 23.5 34 30 - - - 82 ANL 185 - 12
  15 19 23.5 34 30 - - - 82 ANL 185 - 14
  17 19 23.5 34 30 - - - 82 ANL 185 - 16
  21 19 23.5 34 30 - - - 89 ANL 185 - 20
240 10.5 21 26.5 38 35 - - - 94 ANL 240 - 10
  13 21 26.5 38 35 - - - 94 ANL 240 - 12
  15 21 26.5 38 35 - - - 94 ANL 240 - 14
  17 21 26.5 38 35 - - - 94 ANL 240 - 16
300 13 23.5 30 43 46 - - - 111 ANL 300 - 12
  15 23.5 30 43 46 - - - 111 ANL 300 - 14
  17 23.5 30 43 46 - - - 111 ANL 300 - 16
  21 23.5 30 43 46 - - - 111 ANL 300 - 20
400 17 27 36.5 50 49 - - - 114 ANL 400 - 16
  21 27 36.5 50 49 - - - 114 ANL 400 - 20
500 17 30 39 56 58 - - - 134 ANL 500 - 16
  21 30 39 56 58 - - - 134 ANL 500 - 20
630 17 35 41.5 61 70 - - - 144 ANL 630 - 16
  21 35 41.5 61 70 - - - 144 ANL 630 - 20
  10.5 35 41.5 61 70 - - - 144 ANL 630 - 4 E10
