Cable Lugs & Terminals

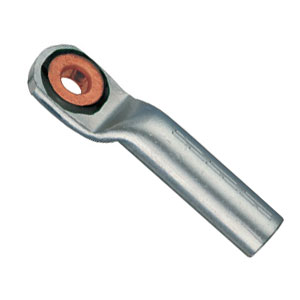

Aluminium Lugs With Copper Ring

  1. Home
  2. Products
  3. Aluminium Lugs With Copper Ring

Our Products

Cable Lugs & Terminals

Aluminium Lugs With Copper Ring

Cable Terminal
Cable Terminal

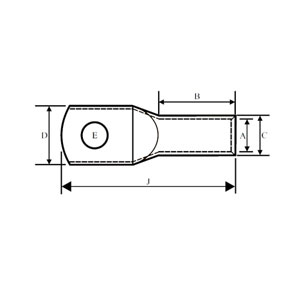

Size mm2 E A C D B J Product Code
50 8.2 9.3 13.0 18.0 33.0 65.0 AALC 50 - 8
50 10.2 9.3 13.0 23.0 33.0 65.0 AALC 50 - 10
50 12.7 9.3 13.0 23.0 33.0 65.0 AALC 50 - 12
70 8.2 11.6 16.0 22.0 39.0 73.0 AALC 70 - 8
70 10.2 11.6 16.0 22.0 39.0 73.0 AALC 70 - 10
70 12.7 11.6 16.0 22.0 39.0 73.0 AALC 70 - 12
95 10.2 12.9 17.1 25.0 42.0 78.0 AALC 95 - 10
95 12.7 12.9 17.1 25.0 42.0 78.0 AALC 95 - 12
95 16.2 12.9 17.1 25.0 42.0 78.0 AALC 95 - 16
120 10.2 14.8 19.6 28.0 48.0 89.0 AALC 120 - 10
120 12.7 14.8 19.6 28.0 48.0 89.0 AALC 120 - 12
120 16.2 14.8 19.6 28.0 48.0 89.0 AALC 120 - 16
150 10.2 16.1 21.5 31.0 51.0 96.0 AALC 150 - 10
150 12.7 16.1 21.5 31.0 51.0 96.0 AALC 150 - 12
150 16.2 16.1 21.5 31.0 51.0 96.0 AALC 150 - 16
185 10.2 18.5 24.0 34.0 54.0 102 AALC 185 - 10
185 12.7 18.5 24.0 34.0 54.0 102 AALC 185 - 12
185 16.2 18.5 24.0 34.0 54.0 102 AALC 185 - 16
225 12.7 20.6 27.0 39.0 60.0 114 AALC 225 - 12
240 12.7 22.0 28.6 40.0 66.0 124 AALC 240 - 12
240 16.2 22.0 28.6 40.0 66.0 124 AALC 240 - 16
300 16.2 25.0 32.0 46.3 70.5 138.5 AALC 300 - 16
300 20.3 25.0 32.0 46.3 70.5 138.5 AALC 300 - 20
400 20.3 29.0 37.5 54.1 84.0 158 AALC 400 - 20
500 20.3 30.0 41.0 58.0 90.0 170 AALC 500 - 20
630 20.3 35.0 46.0 66.0 103.5 188.5 AALC 630 - 20
