Aluminium Lugs

MATERIAL - Aluminium

FINISH - Natural/Passivated Aluminium

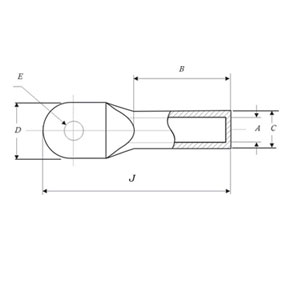

Size mm2	Stud Hole E	A	C	D	B	J	Product Code
2.5	3.7	2.6	5.5	7	10.5	21.5	AAH 2.5 - 4
4	4.2	2.9	5.5	7	10.5	21.5	AAH 4 - 4
4	5.2	2.9	5.5	12	10.5	27.5	AAH 4 - 5
6	5.2	3.5	5.5	8	10.5	27.5	AAH 6 - 5
6	6.4	3.5	5.5	12	10.5	27.5	AAH 6 - 6
10	6.4	4.4	7.4	10	13.5	34.5	AAH 10 - 6
10	8.2	4.4	7.4	15	13.5	34.5	AAH 10 - 8
16	6.4	5.4	8.3	11	19.5	43.5	AAH 16 - 6
16	8.2	5.4	8.3	11	19.5	43.5	AAH 16 - 8
16	10.2	5.4	8.3	18	19.5	43.5	AAH 16 - 10
25	8.2	7	10	14	24	52	AAH 25 - 8
25	10.2	7	10	20	24	52	AAH 25 - 10
25	12.7	7	10	20	24	52	AAH 25 - 12
35	8.2	8	10.8	15	27	56	AAH 35 - 8
35	10.2	8	10.8	20	27	56	AAH 35 - 10
50	8.2	9.3	13	18	33	65	AAH 50 - 8
50	10.2	9.3	13	23	33	65	AAH 50 - 10
50	12.7	9.3	13	23	33	65	AAH 50 - 12
70	8.2	11.6	16	22	39	73	AAH 70 - 8
70	10.2	11.6	16	22	39	73	AAH 70 - 10
70	12.7	11.6	16	22	39	73	AAH 70 - 12
95	10.2	12.9	17.1	25	42	78	AAH 95 - 10
95	12.7	12.9	17.1	25	42	78	AAH 95 - 12
95	16.2	12.9	17.1	25	42	78	AAH 95 - 16
120	10.2	14.8	19.6	28	48	89	AAH 120 - 10
120	12.7	14.8	19.6	28	48	89	AAH 120 - 12
120	16.2	14.8	19.6	28	48	89	AAH 120 - 16
150	10.2	16.1	21.5	31	51	96	AAH 150 - 10
150	12.7	16.1	21.5	31	51	96	AAH 150 - 12
150	16.2	16.1	21.5	31	51	96	AAH 150 - 16
185	10.2	18.5	24	34	54	102	AAH 185 - 10
185	12.7	18.5	24	34	54	102	AAH 185 - 12
185	16.2	18.5	24	34	54	102	AAH 185 - 16
225	12.7	20.6	27	39	60	114	AAH 225 - 12
240	12.7	22	28.6	40	66	124	AAH 240 - 12
240	16.2	22	28.6	40	66	124	AAH 240 - 16
300	16.2	25	32	46.3	70.5	138.5	AAH 300 - 16
300	20.3	25	32	46.3	70.5	138.5	AAH 300 - 20
400	20.3	29	37.5	54.1	84	158	AAH 400 - 20
500	20.3	30	41	58	90	170	AAH 500 - 20
630	20.3	35	46	66	103.5	188.5	AAH 630 - 20
800	-	39	51	73	115.5	218.5	AAH - 800
1000	-	43.5	57	81	150	270	AAH - 1000
