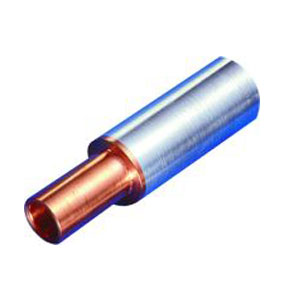

Aluminium Copper BI - Metal Connector / Splice

Al- Cu Bi- Metal splice are used for joining Aluminum Cable to Copper Cable.

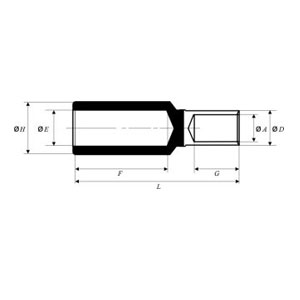

Cable Area mm2		Dimensions
Al. Solid or Stranded	Copper Stranded	E	A	H	F	D	G	L	Product Code
16	16	5.5	5.6	16	43	12.2	29	88	ABS 16 - 16
25	16	6.8	5.5	16	35	12.2	20	70	ABS 25 - 16
25	25	6.5	7	16	43	12.2	29	88	ABS 25 - 25
35	16	8	5.5	16	41	12.2	20	76	ABS 35 - 16
35	25	8	7	16	41	12.2	25	82	ABS 35 - 25
35	35	8	8	16	43	12.2	29	88	ABS 35 - 35
50	25	9.8	7	16	41	12.2	25	85	ABS 50 - 25
50	35	9.8	8.2	16	41	12.5	30	90	ABS 50 - 35
50	50	9	9.5	20	43	12.2	29	88	ABS 50 - 50
70	35	11.2	8.2	18.5	45	12.5	30	95	ABS 70 - 35
70	50	11.2	10	18.5	45	14.5	35	100	ABS 70 - 50
70	70	11	11	20	43	21	33	90	ABS 70 - 70
95	50	13.2	10	22	50	14.5	35	105	ABS 95 - 50
95	70	13.2	11.5	22	50	16.5	40	110	ABS 95 - 70
95	95	12.5	13	20	43	21	33	90	ABS 95 - 95
120	70	14.7	11.5	23	55	16.5	40	116	ABS 120 - 70
120	95	14.7	13.5	23	55	19	42	118	ABS 120 - 95
120	120	13.7	14.2	25	59	21	33	107	ABS 120 - 120
150	95	16.3	13.5	25	55	19	42	120	ABS 150 - 95
150	120	16.3	15.5	25	55	21	44	122	ABS 150 - 120
150	150	15.5	16	25	59	21	33	107	ABS 150 - 150
185	120	18.3	15.5	28.5	59	21	44	128	ABS 185 - 120
185	150	18.3	17	28.5	59	23.5	45	130	ABS 185 - 150
185	185	17	18	32	59	26.2	43	120	ABS 185 - 185
240	150	21	17	32	60	23.5	45	132	ABS 240 - 150
240	185	21	19	32	60	25.5	47	135	ABS 240 - 185
240	240	21	21.5	32	60	29	52	140	ABS 240 - 240
