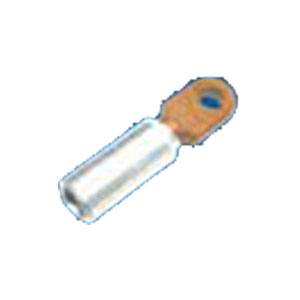

Bimetallic Lugs With Centre Palm

Conductivity

Aluminium 61.8% IACS (MIN)

Copper 99.7% IACS

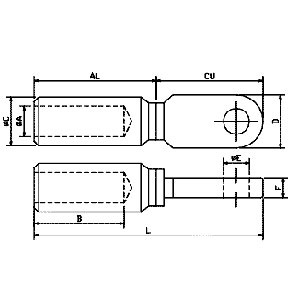

Size mm2	Stud Hole E	A	B	C	D	F	L	Product Code
70	11	10	54	16	26	11	111	ABCP - 70
120	11	12	54	20	27	11	110	ABCP - 120
185	11	16	55	27	27	11	111	ABCP - 185
300	11	20	53	32	27	11	110	ABCP - 300

Conductive Material

Aluminium Barrel : 99.6%

Copper Palm : 99.95%

Final Metal State : Fully Annealed, Including Joint.

Joining method : Friction welding, welding area more than nominal conductor area. Finish natural.

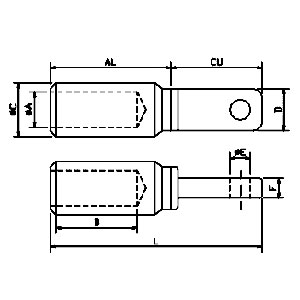

Size mm2	Stud Hole E	A	B	C	D	F	L	Product Code
240	17	21	65	32	35	13	131	ABCP - 240
