Crimping Type Copper Tubular Cable Terminal Ends - Light Duty

MATERIAL - E-Copper

FINISH - Electro Tinned

FEATURES - With inspection hole hole and barrel ends are champhered for easy entry

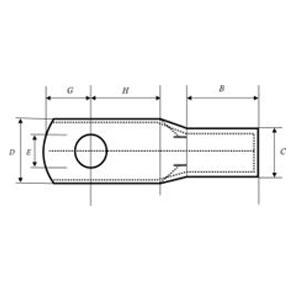

Crimping Type Copper Tubular Cable Terminal

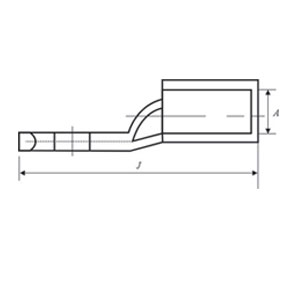

Crimping Type Copper Tubular Cable Terminal
Crimping Type Copper Tubular Cable Terminal
Cable Size SQ. mm Stud Hole E A C D G H B J Product Code
1.5 4.2 1.8 3.7 8 4 5 5 16 ALD 1.5 - 4
  5.2 1.8 3.7 8 4 5 5 16 ALD 1.5 - 5
  6.5 1.8 3.7 10 5 6 5 18 ALD 1.5 - 6
2.5 4.2 2.4 4 8 4 5 7 18 ALD 2.5 - 4
  5.2 2.4 4 10 5 6 7 20 ALD 2.5 - 5
  6.5 2.4 4 10 5 6 7 20 ALD 2.5 - 6
  8.4 2.4 4 9 7 8 7 24 ALD 2.5 - 8
4 4.2 3.1 4.8 10 5 6 7 20 ALD 4 - 4
  5.2 3.1 4.8 10 5 6 7 20 ALD 4 - 5
  6.5 3.1 4.8 10 5 6 7 20 ALD 4 - 6
  8.2 3.1 4.8 12 7 8 7 24 ALD 4 - 8
6 5.2 3.8 5.5 10 5 6 9 23 ALD 6 - 5
  6.5 3.8 5.5 10 5 6 9 23 ALD 6 - 6
  8.2 3.8 5.5 12 6 9 9 27 ALD 6 - 8
  10.5 3.8 5.5 15 9 11 9 32 ALD 6 - 10
10 6.5 4.5 6.2 12 6 7 9 25 ALD 10 - 6
  8.2 4.2 6.2 12 6 9 9 27 ALD 10 - 8
  10.5 4.5 6.2 15 8.5 10.5 10 32 ALD 10 - 10
16 6.5 5.4 7.1 12 7 7 12 30 ALD 16 - 6
  8.2 5.4 7.1 12 7 9 12 32 ALD 16 - 8
  10.5 5.4 7.1 15 8 12 12 36 ALD 16 - 10
  12.7 5.4 7.1 16 8 12 12 36 ALD 16 - 12
20 8.4 6 7.7 12 7 9 12 32 ALD 20 - 8
25 6.5 6.8 8.8 13 6 7 14 30 ALD 25 - 6
  8.2 6.8 8.8 13 6 7 14 30 ALD 25 - 8
  10.5 6.8 8.8 16 9 11 14 37 ALD 25 - 10
  12.7 6.8 8.8 18 11 13 14 41 ALD 25 - 12
35 6.5 8 10 15 9 9 14 35 ALD 35 - 6
  8.4 8 10 15 9 9 14 35 ALD 35 - 8
  10.5 8 10 15 9 9 14 35 ALD 35 - 10
50 6.5 9.2 11.2 16 10 11 19 43 ALD 50 - 6
  8.4 9.2 11.2 16 10 11 19 43 ALD 50 - 8
  10.5 9.2 11.2 16 10 11 19 43 ALD 50 - 10
  12.7 9.2 11.2 16 10 11 19 43 ALD 50 - 12
70 8.4 11.5 13.8 20 12 13 21 50 ALD 70 - 8
  10.5 11.5 13.8 20 12 13 21 50 ALD 70 - 10
  12.7 11.5 13.8 20 12 13 21 50 ALD 70 - 12
95 8.4 12.8 15.6 23 13 13 23 55 ALD 95 - 8
  10.5 12.8 15.8 23 13 13 23 55 ALD 95 - 10
  12.7 12.8 15.6 23 13 13 23 55 ALD 95 - 12
  14.7 12.8 15.6 23 13 13 23 55 ALD 95 - 14
120 8.2 14.8 17.8 26 14 14 25 60 ALD 120 - 8
  10.5 14.8 17.8 26 14 14 25 60 ALD 120 - 10
  12.7 14.8 17.8 26 14 14 25 60 ALD 120 - 12
  17 14.8 17.8 26 14 14 25 60 ALD 120 - 17
150 8.4 16 19.6 28 16 16 30 69 ALD 150 - 8
  10.5 16 19.6 28 16 16 30 69 ALD 150 - 10
  12.7 16 19.6 28 16 16 30 69 ALD 150 - 12
  14.7 16 19.6 28 16 16 30 69 ALD 150 - 14
  17 16 19.6 28 16 16 30 69 ALD 150 - 17
185 10.5 18 22 32 17 17 36 78 ALD 185 - 10
  13 18 22 32 17 17 36 78 ALD 185 - 12
  14.7 18 22 32 17 17 36 78 ALD 185 - 14
  17 18 22 32 17 17 36 78 ALD 185 - 16
240 10.5 22 26 38 20 20 42 92 ALD 240 - 10
  13 22 26 38 20 20 42 92 ALD 240 - 12
  14.7 22 26 38 20 20 42 92 ALD 240 - 14
  17 22 26 38 20 20 42 92 ALD 240 - 16
  21 22 26 38 20 20 42 92 ALD 240 - 20
300 13 24 28.7 42 22 22 46 101 ALD 300 - 12
  14.7 24 28.7 42 22 22 46 101 ALD 300 - 14
  17 24 28.7 42 22 22 46 101 ALD 300 - 16
  21 24 28.7 42 22 22 46 101 ALD 300 - 20
400 14.7 28 33.2 49 26 26 49 114 ALD 400 - 14
  17 28 33.2 49 26 26 49 114 ALD 400 - 16
  21 28 33.2 49 26 26 49 114 ALD 400 - 20
500 14.7 30 36 53 28 28 53 124 ALD 500 - 14
  17 30 36 53 28 28 53 124 ALD 500 - 16
  21 30 36 53 28 28 53 124 ALD 500 - 20
630 17 35 41.5 61 33 33 61 144 ALD 630 - 16
  21 35 41.5 61 33 33 61 144 ALD 630 - 20
