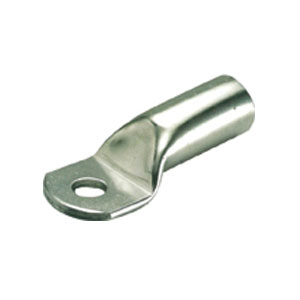

Tubular Compression Cable Lugs

MATERIAL - E-Copper

FINISH - Uncotted / Electro Tinned

FEATURES - Without inspection hole

Circular Stranded Copper Conductor To DIN 48201 & Circular Stranded/Sector Shaped Conductor To DIN VDE 0295.

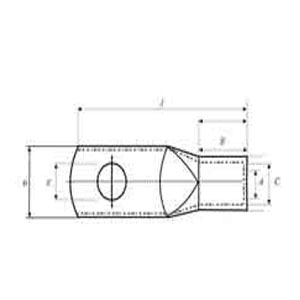

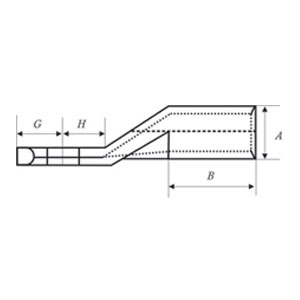

Sizes	Atud. Hole	Inside	Outside	Width	Barrel	Length	Product Code
Sizes	E	A	C	D	B	J	Product Code
6 - 5	5.3	3.8	5.5	8.5	10	30.5	AUTD 6 - 5
6 - 6	6.4	3.8	5.5	8.5	10	31.5	AUTD 6 - 6
6 - 8	8.4	3.8	5.5	10	10	34	AUTD 6 - 8
10 - 5	5.3	4.5	6	9	10	34	AUTD 10 - 5
10 - 6	6.4	4.5	6	9	10	34.5	AUTD 10 - 6
10 - 8	8.4	4.5	6	13	10	37	AUTD 10 - 8
16 - 6	6.4	5.5	8.5	13	20	43.5	AUTD 16 - 6
16 - 8	8.4	5.5	8.5	13	20	46	AUTD 16 - 8
16 - 10	10.5	5.5	8.5	17	20	48	AUTD 16 - 10
16 - 12	13	5.5	8.5	18	20	49	AUTD 16 - 12
25 - 6	6.4	7	10	14	20	45.5	AUTD 25 - 6
25 - 8	8.4	7	10	16	20	48	AUTD 25 - 8
25 - 10	10.5	7	10	17	20	50	AUTD 25 - 10
25 - 12	13	7	10	19	20	51	AUTD 25 - 12
35 - 6	6.4	8.2	12.5	17	20	49.5	AUTD 35 - 6
35 - 8	8.4	8.2	12.5	17	20	52	AUTD 35 - 8
35 - 10	10.5	8.2	12.5	19	20	54	AUTD 35 - 10
35 - 12	13	8.2	12.5	21	20	55	AUTD 35 - 12
35 - 14	15	8.2	12.5	21	20	56.5	AUTD 35 - 14
50 - 8	8.4	10	14.5	20	28	62	AUTD 50 - 8
50 - 10	10.5	10	14.5	22	28	64	AUTD 50 - 10
50 - 12	13	10	14.5	24	28	65	AUTD 50 - 12
50 - 14	15	10	14.5	24	28	66.5	AUTD 50 - 14
50 - 16	17	10	14.5	28	28	68	AUTD 50 - 16
70 - 8	8.4	11.5	16.5	24	28	65	AUTD 70 - 8
70 - 10	10.5	11.5	16.5	24	28	67	AUTD 70 - 10
70 - 12	13	11.5	16.5	24	28	68	AUTD 70 - 12
70 - 14	15	11.5	16.5	24	28	69.5	AUTD 70 - 14
70 - 16	17	11.5	16.5	30	28	71	AUTD 70 - 16
95 - 8	8.4	13.5	19	28	35	77	AUTD 95 - 8
95 - 10	10.5	13.5	19	28	35	77	AUTD 95 - 10
95 - 12	13	13.5	19	28	35	78	AUTD 95 - 12
95 - 14	15	13.5	19	28	35	79.5	AUTD 95 - 14
95 - 16	17	13.5	19	32	35	81	AUTD 95 - 16
120 - 10	10.5	15.5	21	32	35	85	AUTD 120 - 10
120 - 12	13	15.5	21	32	35	86	AUTD 120 - 12
120 - 14	15	15.5	21	32	35	88	AUTD 120 - 14
120 - 16	17	15.5	21	32	35	89	AUTD 120 - 16
120 - 20	21	15.5	21	38	35	91	AUTD 120 - 20
150 - 10	10.5	17	23.5	34	35	93	AUTD 150 - 10
150 - 12	13	17	23.5	34	35	94	AUTD 150 - 12
150 - 14	15	17	23.5	34	35	97	AUTD 150 - 14
150 - 16	17	17	23.5	34	35	97	AUTD 150 - 16
150 - 20	21	17	23.5	40	35	99	AUTD 150 - 20
185 - 10	10.5	19	25.5	37	40	97	AUTD 185 - 10
185 - 12	13	19	25.5	37	40	98	AUTD 185 - 12
185 - 14	15	19	25.5	37	40	101	AUTD 185 - 14
185 - 16	17	19	25.5	37	40	101	AUTD 185 - 16
185 - 20	21	19	25.5	40	40	103	AUTD 185 - 20
240 - 12	13	21.5	29	42	40	108	AUTD 240 - 12
240 - 14	15	21.5	29	42	40	111	AUTD 240 - 14
240 - 16	17	21.5	29	42	40	111	AUTD 240 - 16
240 - 20	21	21.5	29	45	40	113	AUTD 240 - 20
300 - 12	13	24.5	32	48	50	119	AUTD 300 - 12
300 - 14	15	24.5	32	48	50	119	AUTD 300 - 14
300 - 16	17	24.5	32	48	50	119	AUTD 300 - 16
300 - 20	21	24.5	32	48	50	122	AUTD 300 - 20
400 - 14	15	27.5	38.5	55	70	140	AUTD 400 - 14
400 - 16	17	27.5	38.5	55	70	140	AUTD 400 - 16
400 - 20	21	27.5	38.5	55	70	140	AUTD 400 - 20
500 - 16	17	31	42	60	70	150	AUTD 500 - 16
500 - 20	21	31	42	60	70	150	AUTD 500 - 20
625 - 16	17	34.5	44	64	80	160	AUTD 625 - 16
625 - 20	21	34.5	44	64	80	160	AUTD 625 - 20
800 - 16	17	40	52	75	100	195	AUTD 800 - 16
800 - 20	21	40	52	75	100	195	AUTD 800 - 20
1000 - 16	17	44	58	85	100	195	AUTD 1000 - 16
1000 - 20	21	44	58	85	100	195	AUTD 1000 - 20
