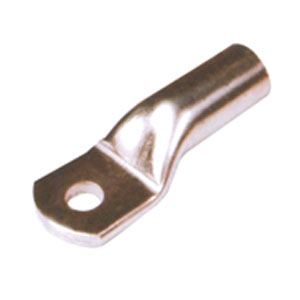

High Voltage Copper Terminals - 33 KV

MATERIAL - E-Copper

FINISH - Electro Tinned

FEATURES - Without inspection hole

These terminals are designed for high voltage applications, upto 33kv.
They are manufactured form high purity copper tube, annealed & tin plated.
The extended barrel enhances both electrical and mechanical performance.
The absence of an inspection hole to prevent moisture entry into the crimped joint makes these terminals suitable for outdoor applications.

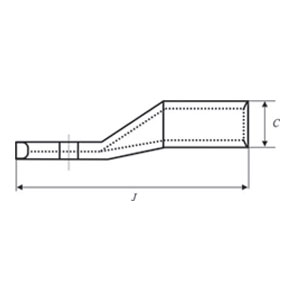

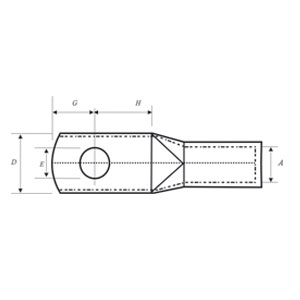

Cable mm2	Stud Hole E	Dimensions (mm2)						Product Code
Cable mm2	Stud Hole E	A	C	D	G	H	J	Product Code
25	8	6.8	10	14	8	9	65	AVCT 25 - 8
	10	6.8	10	18	11	13	72	AVCT 25 - 10
	12	6.8	10	21	14	16	78	AVCT 25 - 12
35	12	8.2	12.5	21	14	16	79	AVCT 35 - 12
	16	8.2	12.5	26	17	19	85	AVCT 35 - 16
50	12	9.5	14.5	21	14	16	79	AVCT50 - 12
	16	9.5	14.5	26	17	19	85	AVCT50 - 16
70	12	11	16	28	14	16	81	AVCT 70 - 12
	16	11	16	30	17	19	87	AVCT 70 - 16
95	12	13.5	19	28	14	16	91	AVCT 95 - 12
	14	13.5	19	29	16	18	95	AVCT 95 - 14
	16	13.5	19	30	17	20	97	AVCT 95 - 16
120	12	15	20.5	31	14	16	97	AVCT 120 - 12
	14	15	20	31	16	18	101	AVCT 120 - 14
150	12	16.5	23	32	14	16	97	AVCT 150 - 12
	14	16.5	23	32	16	18	101	AVCT 150 - 14
185	14	17	23.5	16	32.5	18	101	AVCT 185 - 14
240	14	19.2	25.5	44	16	18	105	AVCT 240 - 14
300	14	23.5	32	43	16	18	105	AVCT 300 - 14
400	14	27	38	51	19	22	140	AVCT 400 - 14
	16	27	38	51	19	22	140	AVCT 400 - 16
	20	27	38	51	23	24	146	AVCT 400 - 20
500	16	30.3	41	56.5	19	22	147	AVCT 500 - 16
	20	30.3	41	56.5	23	24	153	AVCT 500 - 20
630	16	33.4	43	61.5	19	22	159	AVCT 630 - 16
	20	33.4	43	61.5	23	24	165	AVCT 630 - 20
