Bimetallic Lugs With Extended Palm

CONDUCTIVE MATERIAL

Aluminium Barrel : 99.6%

Copper Palm : 99.95%

Final Metal State : Fully Annealed, Including Joint.

Joining method : Friction welding, welding area more than nominal conductor area.

Finish :Natural.

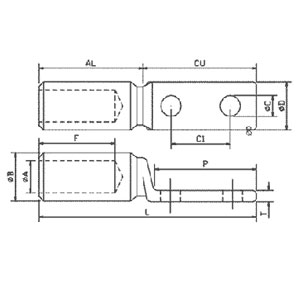

Size mm2	A	B	C	C1	D	F	T	AL	CU	P	L	Product Code
70	25	12.5	13	45	25	58	6	63	77	67	140	ABEP - 70
95	25	14 5	13	45	25	58	6	63	77	67	140	ABEP - 95
120	25	17	13	45	25	58	6	63	77	67	140	ABEP - 120
150	30 2	18 5	13	45	25	58	7	63	77	67	140	ABEP - 150
185	30.2	20	13	45	25	58	7	63	77	67	140	ABEP - 185
