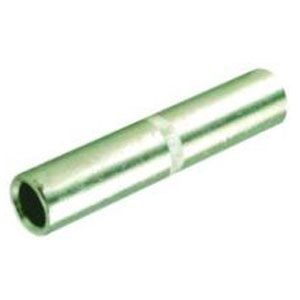

Copper Connectors With Solid Barrier

MATERIAL - E-Copper

FINISH - Copper

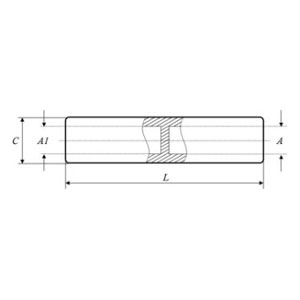

Cable Size mm2	Dimensions in mm					Product Code
Cable Size mm2	mm2	A	AL	L	C	Product Code
35	35	8.2	8.2	60	11	ASB - 35
35	50	8.2	10	60	13	ASB - 3550
50	50	10	10	60	13	ASB - 50
50	70	10	11.5	65	16	ASB - 5070
70	70	11.5	11.5	65	16	ASB - 70
70	95	11.5	14	85	20	ASB - 7095
95	95	14	14	85	20	ASB - 95
95	120	14	15.5	95	22	ASB - 9512
120	120	15.5	15.5	95	22	ASB - 120
120	150	15.5	17	105	23.5	ASB - 1215
150	150	17	17	105	23.5	ASB - 150
150	185	17	19	115	24	ASB - 1518
120	185	15.5	19	115	24	ASB - 1218
185	185	19	19	115	24	ASB - 185
185	240	19	21.5	125	28	ASB - 1824
240	240	21.5	21.5	125	28	ASB - 240
150	240	17	21.5	125	28	ASB - 1524
240	300	21.5	24.5	140	31.5	ASB - 2430
185	300	19	24.5	140	31.5	ASB - 1830
300	300	24.5	24.5	140	31.5	ASB - 300
300	400	24.5	27.5	170	36.5	ASB- 3040
400	400	27.5	27.5	170	36.5	ASB - 400
