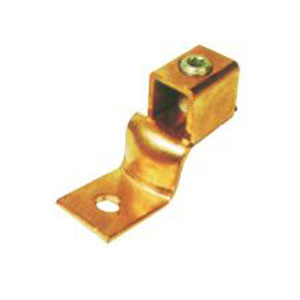

Copper Solderless Lugs (SLU & SAU Type)

Single Hole, Single Collar

Concave pressure bar and V - bottom collar ensures firm, permanent grip and positive contact.

MATERIAL - 100% pure electrolytic copper

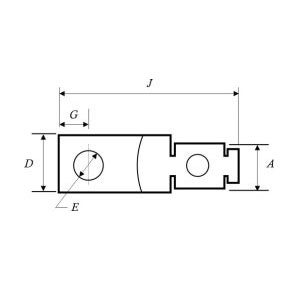

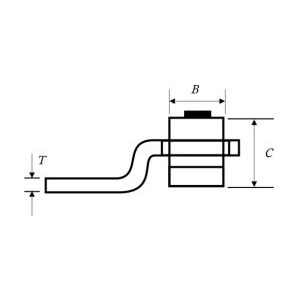

Copper Conductor Current Rating Dimension (Inches) Product Code
Size Range (Amps) J D G E T B C A
14 - 6 35 1.19 0.38 0.23 0.25 0.07 0.43 0.5 0.33 ASW - 35
14 - 4 50/70 1.31 0.5 0.25 0.28 0.08 0.43 0.56 0.38 ASW - 70
12 - 2 90 1.55 0.5 0.25 0.34 0.09 0.5 0.65 0.47 ASW - 90
8 - 1/0 125 1.97 0.63 0.5 0.28 0.13 0.63 0.88 0.62 ASW - 125
4 - 3/0 175 2.19 0.75 0.44 0.5 0.13 0.75 1.03 0.71 ASW - 175
6 - 4/0 225 2.38 1 0.47 0.56 0.13 1 1.17 0.75 ASW - 225
1/0-350 300 3.16 1 0.5 0.94 0.19 1.23 1.39 1 ASW - 300
4/0 - 500 400 4.25 1.5 0.88 1 0.19 1.5 1.57 1.16 ASW - 400
600-1000 650 4.63 2 1.16 0.69 0.25 1.88 2.34 1.68 ASW - 650
