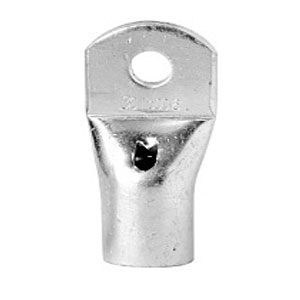

Tinned Copper Cable Lugs - Spanish Standard

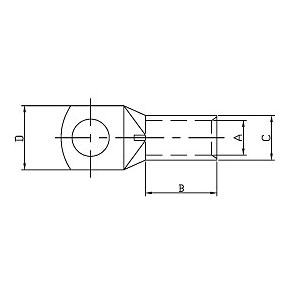

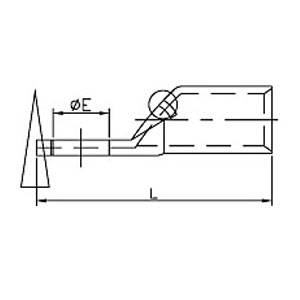

Sizes Stud Hole E Dimensions Product Code
A C D B L
 1.5 - 4 4.3 2.4 4.0 8.7 7.0 19.0 ATN 1.5 - 4
 1.5 - 5 5.3 2.4 4.0 8.7 7.0 19.0 ATN 1.5 - 5
 1.5 - 6 6.4 2.4 4.0 10 7.0 20.0 ATN 1.5 - 6
 2.5 - 4 4.3 2.7 4.3 8.7 7.0 19.0 ATN 2.5 - 4
 2.5 - 5 5.3 2.7 4.3 8.7 7.0 19.0 ATN 2.5 - 5
 2.5 - 6 6.4 2.7 4.3 10.3 7.0 21.0 ATN 2.5 - 6
 2.5 - 8 8.3 2.7 4.3 12.0 7.0 23.0 ATN 2.5 - 8
 4 - 4 4.3 3.1 4.8 8.7 9.5 21.5 ATN 4 - 4
 4 - 5 5.3 3.1 4.8 8.7 9.5 21.5 ATN 4 - 5
 4 - 6 6.4 3.1 4.8 10.3 9.5 23.5 ATN 4 - 6
 4 - 8 8.3 3.1 4.8 12.5 9.5 28.5 ATN 4 - 8
 6 - 4 4.3 3.8 5.5 10.3 10.0 26.0 ATN 6 - 4
 6 - 5 5.3 3.8 5.5 10.3 10.0 26.0 ATN 6 - 5
 6 - 6 6.4 3.8 5.5 10.3 10.0 26.0 ATN 6 - 6
 6 - 8 8.3 3.8 5.5 13.9 10.0 29.0 ATN 6 - 8
 6 - 10 10.5 3.8 5.5 13.9 10.0 29.0 ATN 6 - 10
 10 - 4 4.3 4.7 6.9 11.9 11.5 27.5 ATN 10 - 4
 10 - 5 5.3 4.7 6.9 11.9 11.5 27.5 ATN 10 - 5
 10 - 6 6.4 4.7 6.9 11.9 11.5 27.5 ATN 10 - 6
 10 - 8 8.3 4.7 6.9 13.5 11.5 30.5 ATN 10 - 8
 10 - 10 10.5 4.7 6.9 15.0 11.5 30.5 ATN 10 - 10
 10 - 12 13.2 4.7 6.9 17.0 11.5 34.0 ATN 10 - 12
 16 - 5 5.3 5.6 7.8 12.0 12.0 27.5 ATN 16 - 5
 16 - 6 6.4 5.6 7.8 12.0 12.0 27.5 ATN 16 - 6
 16 - 8 8.3 5.6 7.8 13.5 12.0 31.0 ATN 16 - 8
 16 - 10 10.5 5.6 7.8 16.0 12.0 32.0 ATN 16 - 10
 16 - 12 13.2 5.6 7.8 17.0 12.0 37.5 ATN 16 - 12
 25 - 6 6.4 7.1 9.5 14.0 13.5 34.0 ATN 25 - 6
 25 - 8 8.3 7.1 9.5 14.0 13.5 34.0 ATN 25 - 8
 25 - 10 10.5 7.1 9.5 16.0 13.5 37.0 ATN 25 - 10
 25 - 12 13.2 7.1 9.5 18.0 13.5 40.0 ATN 25 - 12
 35 - 6 6.4 8.2 11.0 16.5 16.0 39.0 ATN 35 - 6
 35 - 8 8.3 8.2 11.0 16.5 16.0 39.0 ATN 35 - 8
 35 - 10 10.5 8.2 11.0 16.5 16.0 43.0 ATN 35 - 10
 35 - 12 13.2 8.2 11.0 18.0 16.0 43.0 ATN 35 - 12
 35 - 14 14.5 8.2 11.0 20.0 16.0 48.0 ATN 35 - 14
 40 - 6 6.4 9.0 11.2 17.0 17.0 44.0 ATN 40 - 6
 40 - 8 8.3 9.0 11.2 17.0 17.0 44.0 ATN 40 - 8
 40 - 10 10.5 9.0 11.2 17.0 17.0 44.0 ATN 40 - 10
 40 - 12 13.2 9.0 11.2 18.0 17.0 44.0 ATN 40 - 12
 50 - 6 6.4 9.5 12.5 18.0 20.0 45.0 ATN 50 - 6
 50 - 8 8.3 9.5 12.5 18.0 20.0 45.0 ATN 50 - 8
 50 - 10 10.5 9.5 12.5 18.0 20.0 49.0 ATN 50 - 10
 50 - 12 13.2 9.5 12.5 18.0 20.0 49.0 ATN 50 - 12
 50 - 14 14.5 9.5 12.5 22.0 20.0 54.0 ATN 50 - 14
 50 - 16 16.5 9.5 14.0 25.0 23.0 62.0 ATN 50 - 16
 50 - 20 21.0 9.5 14.0 30.0 23.0 68.0 ATN 50 - 20
 70 - 8 8.3 11.5 15.0 22.0 20.0 47.6 ATN 70 - 8
 70 - 10 10.5 11.5 15.0 22.0 20.0 51.6 ATN 70 - 10
 70 - 12 13.2 11.5 15.0 22.0 20.0 51.6 ATN 70 - 12
 70 - 14 14.5 11.5 15.0 22.0 20.0 62.6 ATN 70 - 14
 70 - 16 16.5 11.5 15.0 22.0 20.0 62.6 ATN 70 - 16
 70 - 20 21.0 11.5 15.0 30.0 20.0 62.6 ATN 70 - 20
 95 - 8 8.3 13.5 17.0 25.0 22.0 55.8 ATN 95 - 8
 95 - 10 10.5 13.5 17.0 25.0 22.0 55.8 ATN 95 - 10
 95 - 12 13.2 13.5 17.0 25.0 22.0 55.8 ATN 95 - 12
 95 - 14 14.5 13.5 17.0 25.0 22.0 66.8 ATN 95 - 14
 95 - 16 16.5 13.5 17.0 25.0 22.0 66.8 ATN 95 - 16
 95 - 20 21.0 13.5 17.0 30.0 22.0 66.8 ATN 95 - 20
 120 - 10 10.5 15.6 20.0 29.0 27.0 71.5 ATN 120 - 10
 120 - 12 13.2 15.6 20.0 29.0 27.0 71.5 ATN 120 - 12
 120 - 14 14.5 15.6 20.0 29.0 27.0 71.5 ATN 120 - 14
 120 - 16 16.5 15.6 20.0 29.0 27.0 71.5 ATN 120 - 16
 120 - 20 21.0 15.6 20.0 29.0 27.0 71.5 ATN 120 - 20
 150 - 10 10.5 16.5 21.0 30.6 32.0 78.0 ATN 150 - 10
 150 - 12 13.2 16.5 21.0 30.6 32.0 78.0 ATN 150 - 12
 150 - 14 14.5 16.5 21.0 30.6 32.0 78.0 ATN 150 - 14
 150 - 16 16.5 16.5 21.0 30.6 32.0 78.0 ATN 150 - 16
 150 - 20 21.0 16.5 21.0 30.6 32.0 78.0 ATN 150 - 20
 185 - 10 10.5 18.4 23.6 34.0 34.0 84.0 ATN 185 - 10
 185 - 12 13.2 18.4 23.6 34.0 34.0 84.0 ATN 185 - 12
 185 - 14 14.5 18.4 23.6 34.0 34.0 84.0 ATN 185 - 14
 185 - 16 16.5 18.4 23.6 34.0 34.0 84.0 ATN 185 - 16
 185 - 20 21.0 18.4 23.6 34.0 34.0 84.0 ATN 185 - 20
 240 - 10 10.5 21.2 26.4 38.5 37.0 90.0 ATN 240 - 10
 240 - 12 13.2 21.2 26.4 38.5 37.0 90.0 ATN 240 - 12
 240 - 14 14.5 21.2 26.4 38.5 37.0 90.0 ATN 240 - 14
 240 - 16 16.5 21.2 26.4 38.5 37.0 90.0 ATN 240 - 16
 240 - 20 21.0 21.2 26.4 38.5 37.0 90.0 ATN 240 - 20
 300 - 10 10.5 23.4 28.6 42.0 40.0 96.0 ATN 300 - 10
 300 - 12 13.2 23.4 28.6 42.0 40.0 96.0 ATN 300 - 12
 300 - 14 14.5 23.4 28.6 42.0 40.0 96.0 ATN 300 - 14
 300 - 16 16.5 23.4 28.6 42.0 40.0 96.0 ATN 300 - 16
 300 - 20 21.0 23.4 28.6 42.0 40.0 96.0 ATN 300 - 20
 400 - 10 10.5 26.8 32.8 48.0 37.0 104.7 ATN 400 - 10
 400 - 12 13.2 26.8 32.8 48.0 37.0 104.7 ATN 400 - 12
 400 - 14 14.5 26.8 32.8 48.0 37.0 104.7 ATN 400 - 14
 400 - 16 16.5 26.8 32.8 48.0 37.0 104.7 ATN 400 - 16
 400 - 20 21.0 26.8 32.8 48.0 37.0 104.7 ATN 400 - 20
 500 - 10 10.5 29.8 38.4 55.0 46.5 115.5 ATN 500 - 10
 500 - 12 13.2 29.8 38.4 55.0 46.5 115.5 ATN 500 - 12
 500 - 14 14.5 29.8 38.4 55.0 46.5 115.5 ATN 500 - 14
 500 - 16 16.5 29.8 38.4 55.0 46.5 115.5 ATN 500 - 16
 500 - 20 21.0 29.8 38.4 55.0 46.5 115.5 ATN 500 - 20
 630 - 10 10.5 34.5 44.7 64.0 50.0 133.1 ATN 630 - 10
 630 - 12 13.2 34.5 44.7 64.0 50.0 133.1 ATN 630 - 12
 630 - 14 14.5 34.5 44.7 64.0 50.0 133.1 ATN 630 - 14
 630 - 16 16.5 34.5 44.7 64.0 50.0 133.1 ATN 630 - 16
 630 - 20 21.0 34.5 44.7 64.0 50.0 133.1 ATN 630 - 20
