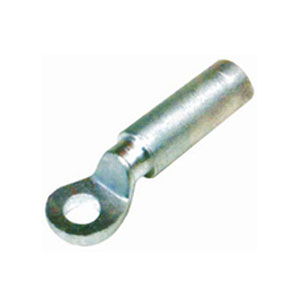

Aluminium Forging Lugs

MATERIAL - E-Copper

FINISH - Natural / Passivated Aluminium

(As Per Din 46329)

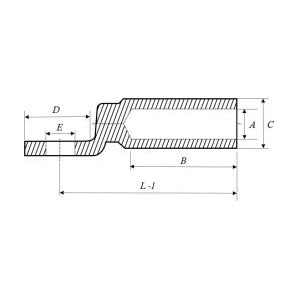

Cable mm2 Stud Hole E Bolt Dimensions Product Code
A C D B L-1
16 8.4 M 8 5.8 12 20 30 50 AAFL 16 - 8
25 8.4 M 8 6.8 12 20 30 50 AAFL 25 - 8
35 8.4 M 8 8 14 25 42 62 AAFL 35 - 8
50 8.4 M 8 9.8 16 25 42 62 AAFL 50 - 8
70 8.4 M 8 11.2 16 25 52 72 AAFL 70 - 8
95 10.5 M 10 13.2 22 25 56 75 AAFL 95 - 10
120 10.5 M 10 14.7 22 30 56 80 AAFL 120 - 10
150 10.5 M 10 16.3 25 30 60 90 AAFL 150 - 10
185 10.5 M 10 18.3 28 30 60 91 AAFL 185 - 10
240 10.5 M 10 21 32 38 70 103 AAFL 240 - 10
300 13 M 12 23.3 34 38 70 103 AAFL 300 - 12
400 13 M 12 26 38 38 73 116 AAFL 400 - 12
500 13 M 12 29 44 44 79 122 AAFL 500 - 12
