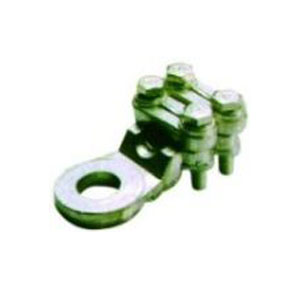

Mechanical Copper Cable - Lugs Bolted With 2 Screws And 4 Screws

MATERIAL - E-Copper

FINISH - Electro Tinned

Cable mm2	Dimensions (mm2)						Product Code

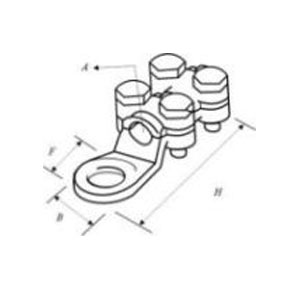

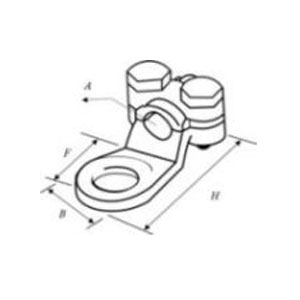

Cable mm2	A	F	B	H	Screw	Type	Product Code
10	4	6	15	32,5	M - 5	1	A2B - 10
16	5.1	8.5	17	37	M - 5	1	A2B - 16
25	6.3	8.5	18.75	42	M - 5	1	A2B - 25
35	7.5	10.5	21.5	49	M - 5	1	A2B - 35
50	9.5	10.5	23	56.5	M - 6	2	A4B - 50
75	11	13.25	26	61	M - 6	2	A4B - 75
100	13	14.3	29	65	M - 6	2	A4B - 100
120	14	14.8	32	71	M - 6	2	A4B - 120
170	16	16	33	81	M - 8	2	A4B - 170
200	17	17	35	85	M - 8	2	A4B - 200
250	18	17	38	87.5	M - 8	2	A4B - 250
300	21	19.8	45	118	M - 10	2	A4B - 300
400/500	25.5	22	53	132	M - 10	2	A4B - 400/500
700	34	22	60	150	M - 10	2	A4B - 700
