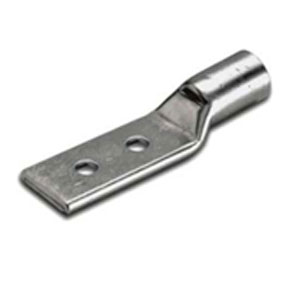

2 Hole Extended Palm Lugs With Inspection Hole

MATERIAL - E-Copper

FINISH - Electro Tinned

FEATURES - With or without inspection hole

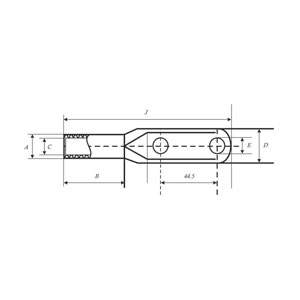

Cable mm2	Stud Hole E	Dimensions					Product Code
Cable mm2	Stud Hole E	A	C	D	B	J	Product Code
16	10.5	5.4	7.6	14.5	16	100	AT162E10
25	10.5	6.8	8.8	15	16	100	AT252E10
35	10.5	8.2	10.6	16.5	16	100	AT352E10
50	10.5	9.5	12.4	17	25	109	AT502E10
	13	9.5	12.4	17	25	109	AT502E12
70	10.5	11.3	14.7	21	30	114	AT702E10
	13	11.3	14.7	21	30	114	AT702E12
95	10.5	13.5	17.4	25	30	116	AT952E10
	13	13.5	17.4	25	30	116	AT952E12
120	10.5	15	19.4	27.5	35	122	AT1202E10
	13	15	19.4	27.5	35	122	AT1202E12
150	10.5	16.5	21.2	30	40	126	AT1502E10
	13	16.5	21.2	30	40	126	AT1502E12
185	10.5	18.5	23.5	33.5	42	132	AT1852E10
	13	18.5	23.5	33.5	42	132	AT1852E12
240	10.5	21	26.5	38.5	50	143	AT2402E10
	13	21	26.5	38.5	50	143	AT2402E12
300	13.7	23.5	30	43	55	144	AT3002E12
400	13.7	28.5	36.5	52.5	60	149	AT4002E12
500	13.7	30	39	56	65	160	AT5002E12
630	13.7	35	45	36.8	75	160	AT6302E12
