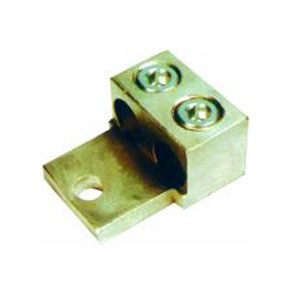

Aluminium Double Barrel Connector, One Hole Mount, One Hole Mount

MATERIAL - Aluminium

FINISH - Electro Tinned

Cable Terminal
Cable Terminal
Cable Terminal
Conductor Range
(Al. or Cu.)		 Dimension In Mm & (inches) Product Code

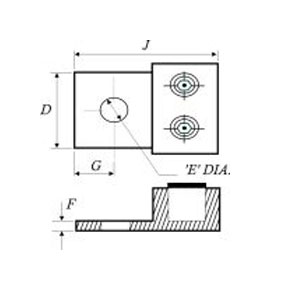

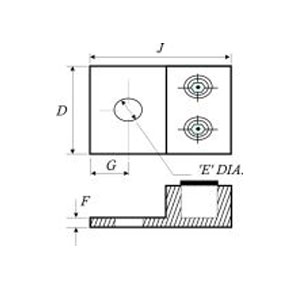

Max. Min. J D G E F D1
1/0 STR 14 AWG 37.10 (1.46) 30.95 (1.22) 11.10 (0.43) 1/4 4.70 (0.18) - AL2A - 10
2/0 STR 14 AWG 37.10 (1.46) 31.75 (1.25) 10.70 (0.42) 1/4 4.70 (0.18) - AL2A - 20
250 KCMIL 6 STR 65.10 (2.56) 41.70 (1.64) 22.20 (0.87) 3/8 6.40 (0.25) 38.1 (1.50) AL2A - 250
350 KCMIL 6 STR 73.00 (2.87) 48.60 (1.91) 22.20 (0.87) 1/2 6.40 (0.25) 44.8 (1.76) AL2A - 350
600 KCMIL 2 STR 81.00 (3.19) 61.10 (2.40) 15.90 (0.62) 1/2 11.10 (0.43) 50.4 (1.98) AL2A - 600
800 KCMIL 300 KCMIL 85.70 (3.37) 80.90 (3.18) 22.20 (0.87) 5/8 12.70 (0.50) 50.4 (1.98) AL2A - 800
1000 KCMIL 500 KCMIL 85.70 (3.37) 80.90 (3.18) 22.20 (0.87) 5/8 12.70 (0.50) - AL2A - 1000
