T - Connector

MATERIAL - E-Copper

FINISH - Copper / Tin Plated

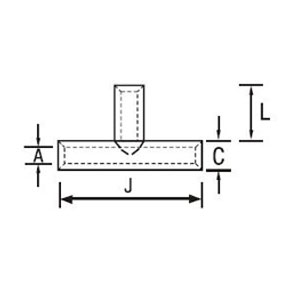

Cable mm2	Dimensions				Product Code
Cable mm2	A	C	J	L	Product Code
1.5	1.8	3.3	30	12	ATC - 1.5
2.5	2.3	4.2	30	12	ATC - 2.5
4	3.0	5.0	30	12	ATC - 4
6	4.0	6.0	35	14	ATC - 6
10	4.5	7.0	35	14	ATC - 10
16	5.5	8.5	50	21	ATC - 16
25	7.0	10.0	55	23	ATC - 25
35	8.5	12.0	70	30	ATC - 35
50	10.0	14.0	80	34	ATC - 50
70	12.0	16.5	85	35	ATC - 70
95	13.5	18.0	90	36	ATC - 95
120	15.0	19.5	95	38	ATC - 120
150	16.5	21.0	110	44	ATC - 150
185	19.0	24.0	115	45	ATC - 185
240	21.0	26.0	130	52	ATC - 240

Also available in aluminium on request.
