Australian Standard Connectors

MATERIAL - E-Copper

FINISH - Electro Tinned

Cable mm2	Dimensions		Product Code

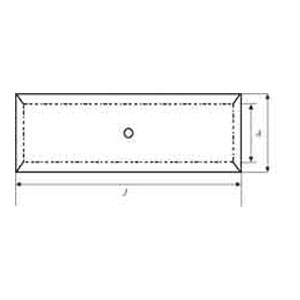

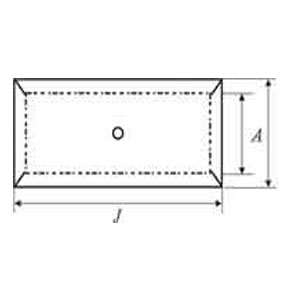

Cable mm2	A	J	Product Code
2.5	2.50	22.2	AAUC - 2.5
4	3.30	22.2	AAUC - 4
6	3.70	22.2	AAUC - 6
10	4.70	22.2	AAUC - 10
16	5.50	44.4	AAUC - 16
25	7.10	47.6	AAUC - 25
35	8.40	47.6	AAUC - 35
50	9.500	47.6	AAUC - 50
70	11.00	50.8	AAUC - 70
95	13.40	54.0	AAUC - 95
120	15.50	65.1	AAUC - 120
150	16.30	65.1	AAUC - 150
185	18.40	65.1	AAUC - 185
240	21.20	88.9	AAUC - 240
300	23.80	88.9	AAUC - 300
400	26.80	88.9	AAUC - 400
500	30.00	114.3	AAUC - 500
630	33.50	114.3	AAUC - 630
