Aluminium Through Connectors

MATERIAL - Electrolytic grade al 99.5

FINISH - Bright or electro-tinned

FEATURES - Barrel prefilled with oxide inhibiting compound & capped at both end

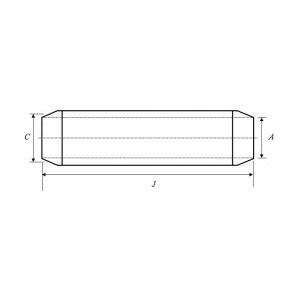

Cable mm2	Dimensions (mm2)			Product Code
Cable mm2	A	C	J	Product Code
16	5.5	16.0	90.5	ATAC - 16
25	6.5	16.0	90.5	ATAC - 25
35	8.0	16.0	90.5	ATAC - 35
50	9.0	20.0	106.5	ATAC - 50
70	11.0	20.0	106.5	ATAC - 70
95	12.5	20.0	106.5	ATAC - 95
120	13.7	25.0	133.0	ATAC - 120
150	15.5	25.0	135.0	ATAC - 150
185	17.0	32.0	143.5	ATAC - 185
240	19.5	32.0	146.0	ATAC - 240
300	22.5	34.0	144.5	ATAC - 300
