Copper Crimp Lug - Australian Standard

Suitable for copper conductor.

Range 0.5 - 1 000 mm2

Seamless copper tube.

Electro tinned.

Cable area clearly identified on the lug.

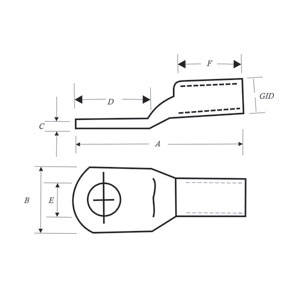

Cable mm2	Stud Hole E	Dimensions							Product Code
Cable mm2	Stud Hole E	A	D	F	B	G	H	J	Product Code
1.5 - 4	4.2	2	8	1	7.5	4	5	18.5	AAU 1.5 - 4
1.5 - 5	5.2	2	8	1	7.5	4	5	18.5	AAU 1.5 - 5
1.5 - 6	6.5	2	10	0.8	7.5	4	6	19.5	AAU 1.5 - 6
2.5 - 4	4.2	2.5	8	1	8	4	5	19	AAU 2.5 - 4
2.5 - 5	5.2	2.5	10	0.8	8	5	6	20	AAU 2.5 - 5
2.5 - 6	6.5	2.5	10	0.8	8	5	6	20	AAU 2.5 - 6
2.5 - 8	8.4	2.5	11	0.7	8	6	9	26	AAU 2.5 - 8
4 - 5	5.2	3.3	10	1	9	5	6	22	AAU 4 - 5
4 - 6	6.5	3.3	10	1	9	5	6	22	AAU 4 - 6
4 - 8	8.4	3.3	12	0.8	9	6	9	26	AAU 4 - 8
4 - 10	10.2	3.3	15	0.8	9	8	11	32	AAU 4 - 10
6 - 5	5.2	3.8	10	1.2	10	5	6	23	AAU 6 - 5
6 - 6	6.5	3.8	12	1	10	6	9	27	AAU 6 - 6
6 - 8	8.4	3.8	12	1	10	6	9	27	AAU 6 - 8
6 - 10	10.2	3.8	15	0.8	10	8	11	32	AAU 6 - 10
10 - 5	5.2	4.7	12	1.8	10	6	7	27	AAU 10 - 5
10 - 6	6.5	4.7	12	1.8	10	6	7	27	AAU 10 - 6
10 - 8	8.4	4.7	14	1.6	10	7	8	29	AAU 10 - 8
10 - 10	10.5	4.7	15	1.5	10	8	10	32	AAU 10 - 10
10 - 12	13	4.7	18	1	10	10	12	38	AAU 10 - 12
16 - 6	6.5	5.5	11	2.4	19	7	9	39	AAU 16 - 6
16 - 8	8.4	5.5	14	1.7	19	7	9	39	AAU 16 - 8
16 - 10	10.5	5.5	16	1.5	19	8	10	41	AAU 16 - 10
16 - 12	13	5.5	18	1.2	19	10	13	46	AAU 16 - 12
25 - 6	6.5	7.1	13.5	2.4	21	7	9	41	AAU 25 - 6
25 - 8	8.4	7.1	13.5	2.4	21	7	9	41	AAU 25 - 8
25 - 10	10.5	7.1	16	1.9	21	9	10	44	AAU 25 - 10
25 - 12	13	7.1	18	1.6	21	10	13	48	AAU 25 - 12
35 - 6	6.5	8.4	16	3	21	9	10	45	AAU 35 - 6
35 - 8	8.4	8.4	16	3	21	9	10	45	AAU 35 - 8
35 - 10	10.5	8.4	18	2.6	21	9	10	45	AAU 35 - 10
35 - 12	13	8.4	20	2.2	22	11	13	51	AAU 35 - 12
50 - 6	6.5	9.5	18	3.3	22	8	10	46	AAU 50 - 6
50 - 8	8.4	9.5	18	3.3	22	8	10	46	AAU 50 - 8
50 - 10	10.5	9.5	18	3.3	22	8	10	52	AAU 50 - 10
50 - 12	13	9.5	21	2.7	22	11	13	54	AAU 50 - 12
70 - 6	6.5	11.3	21	3.5	22	11	13	54	AAU 70 - 6
70 - 8	8.4	11.3	21	3.5	24	11	13	54	AAU 70 - 8
70 - 10	10.5	11.3	21	3.5	24	11	13	54	AAU 70 - 10
70 - 12	13	11.3	21	3.5	24	11	13	54	AAU 70 - 12
70 - 16	17	11.3	26	3	24	14	60	61	AAU 70 - 16
95 - 8	8.4	13.5	25	4	27	12	14	60	AAU 95 - 8
95 - 10	10.5	13.5	25	4	27	12	14	60	AAU 95 - 10
95 - 12	13	13.5	25	4	27	12	14	60	AAU 95 - 12
95 - 16	17	13.5	25	3.5	27	14	16	61	AAU 95 - 16
120 - 8	8.4	15.6	30	5	30	12	14	64	AAU 120 - 8
120 - 10	10.5	15.6	30	5	30	12	14	64	AAU 120 - 10
120 - 12	13	15.6	30	5	30	12	14	64	AAU 120 - 12
120 - 16	17	15.6	30	5	30	16	16	72	AAU 120 - 16
150 - 10	10.5	16.7	32	5.8	30	16	16	71	AAU 150 - 10
150 - 12	13	16.7	32	5.8	32	18	18	75	AAU 150 - 12
150 - 16	17	16.7	32	5.8	30	18	18	75	AAU 150 - 16
185 - 10	18.4	10.5	36	5.8	32	16	16	74	AAU 185 - 10
185 - 12	13	18.5	36	5.8	32	18	18	79	AAU 185 - 12
185 - 16	17	18.4	36	5.8	32	18	18	79	AAU 185 - 16
240 - BL	-	21.2	41	7	38	21	21	92	AAU 240 - BL
240 - 10	10.5	21.2	41	7	38	21	21	92	AAU 240 - 10
240 - 12	13	21.2	41	7	38	21	21	92	AAU 240 - 12
240 - 16	17	21.2	41	7	38	21	21	92	AAU 240 - 16
300 - BL	-	23.8	46	7.8	42	23	23	101	AAU 300 - BL
300 - 12	13	23.8	46	7.8	42	23	23	101	AAU 300 - 12
300 - 16	17	23.8	46	7.8	42	23	23	101	AAU 300 - 16
400 - BL	-	26.8	50	8	44	24	24	107	AAU 400 - BL
500 - BL	-	30	56	9	50	27	27	119	AAU 500 - BL
630 - BL	-	34	64.4	11	58	32	32	139	AAU 630 - BL
