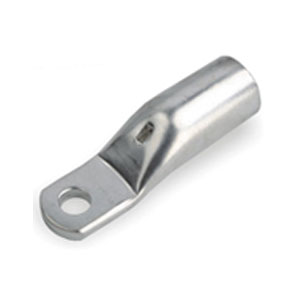

Circuit Breaker Lug

MATERIAL - E-Copper

FINISH - Electro Tinned

Sizes	Stud Hole E	Dimensions (mm)				Product Code
Sizes	Stud Hole E	d	D	B	L	Product Code
10 - 5	5.3	4.3	6.3	9	27	ACL 10 - 5
16 - 5	5.3	5.6	7.8	9	31	ACL 16 - 5
25 - 5	5.3	7	9.3	9	35	ACL 25 - 5
35 - 6	6.4	8.4	10.8	11.5	40.5	ACL 35 - 6
50 - 8	8.4	9.5	12.5	12.8	45.5	ACL 50 - 8
70 - 8	8.4	11.2	14.4	12.8	49	ACL 70 - 8
95 - 8	8.4	13.5	17.5	15.5	54	ACL 95 - 8
120 - 8	8.4	15.6	20	19	68	ACL 120 - 8
120 - 10	10.5	15.6	20	19	68	ACL 120 - 10
150 - 8	8.4	16.7	21.8	19	75	ACL 150 - 8
150 - 10	10.5	16.7	21.8	19	75	ACL 150 - 10
185 - 10	10.5	19	24.2	24.5	79	ACL 185 - 10
240 - 10	10.5	21.1	27.9	29.8	86	ACL 240 - 10
240 - 12	13.2	21.1	27.9	29.8	92	ACL 240 - 12
240 - 16	17	21.1	27.9	29.8	100	ACL 240 - 16
300 - 12	13.2	23.7	31.4	31	97	ACL 300 - 12
