Tape Clip

Material - Copper / Brass / Aluminum

These are used with Bare Copper Tape. Used to support Tape to structure.

Conductor Size mm	Product Code
20 x 3	ATC - 203
25 x 3	ATC - 253
50 x 6	ATC - 506

DC Tape Clip

Material - Gunmetal / Brass

These are used with Bare Copper Tape Conductor. Used to secure Tape to structure.

Conductor Size mm	Product Code
20 x 3	ADTC - 203
25 x 3	ADTC - 253
25 x 4	ADTC - 254
25 x 6	ADTC - 256
40 x 3	ADTC - 403
40 x 6	ADTC - 406
50 x 3	ADTC - 503
50 x 6	ADTC - 506

Square Tape Clamp

Material - Gunmetal / Brass

These are suitable for 4 Way Connections, Straight, Through or Tee Joints for Copper Tape.

Size	Product Code
25 x 3	ASTC - 253
25 x 4	ASTC - 254
25 x 6	ASTC - 256
50 x 6	ASTC - 506

Oblong Test Clamp

Material - Gunmetal / Brass

These are used with Bare Copper Tape. Suitable for straight through tape joint.

Conductor Size mm	Product Code
25 x 3	AOT - 253
40 x 6	AOT - 406
50 x 6	AOT - 506

Plate type Test Clamp / Test Bond

Material Gunmetal / Brass / Aluminium

These are used for 4 way Copper Tape Connection.

Tape Size mm	Product Code
25 x 3	ATBC - 253

Screwdown Test Clamp

Material Gunmetal / Brass

These are used for fixing 2 Way Copper Tape.

Conductor Size mm	Product Code
25 x 3	ASDTC - 253

Glazing Bar Holdfast

Material Gunmetal / Brass

These are secured to Glazing Bar, Steel Frame, Girdles etc. The Item is designed for use with appropriate size of metallic or non - metalic conductor fixing.

Conductor Size mm	Max. Glazing Bar Width mmv	Product Code
25 x 3	12	AGBH - 12

Back Plate Holdfast Stem

Material Gunmetal / Brass

Product Code – ABPH - 12

For use with appropriate DC Tape Clip. It is used when the installation requires the tape to be secured 75 mm away from the face of the wall.

Rod to Tape Coupling

Material Gunmetal / Brass

Used to secure elevation rod by means of a bolted connection.

Air Rod Dia. mm	Thread Dia. mm	Rod Material	Product Code
15	5/8" / 16	Copper	ART - 16C
15	5/8" / 16	Aluminium	ART - 16A
17.2	3/4" / 19	Copper	ART - 19C
17.2	3/4" / 19	Aluminium	ART - 19A

Cable to Tape Junction Clamp

Material Gunmetal / Brass

Used to secure elevation rod by means of a bolted connection.

Tape Size mm x mm	Cable Size mm2	Product Code
25 x 3	50	ACTJ - 253

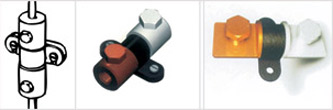

Bi - Metalic Connector

Material Aluminium / Cpper

Fasteners - Brass / Copper / Stainless Steel

These are used for joining Aluminium & Copper Tape, Circular Conductors, particularly when Copper is used as earthing in Aluminium lightning protection systems.

Conductor Dia.	Product Code
8 mm Dia. Al to 8 mm Dia. Cu	ABI – 8
8 mm Dia. Al to 25 x 3 Cu tape	ABI - 825
20 x 3 Al Tape to 25 x 3 Cu Tape	ABI - 203
20 x 3 Al Tape to 25 x 3 Cu Tape	ABI - 253

Cast Ground Plate or Earth Plate

These Plates when used in concrete structures offer convenient ground system connection point. They are used where reinforcing bars are electrically continous & are to be used as down conductors. These earth points allow easy access for the lightning protection & earthing system.

Drwg. No.	Cond. Size	Hole	Product Code
A	120	2 Hole	ACCP - 2120
B	120	4 Hole	ACCP - 4120
B	240	4 Hole	ACCP - 4240
C	240	4 Hole	ACCPL - 4240
