Our Products

Earthing & Lightning

Circular Conductor System

One Hole Cable Clip

Material - Electrolytic Copper

These are recommended to fix cable conductors.

For Solid Conductor For Stranded Conductor
Size MM Product Code Size mm2 Product Code
8 AOH - 8 50 AOH - 50
10 AOH - 10 70 AOH - 70
12 AOH - 12 95 AOH - 95
16 AOH - 16 - -
One Hole Cable Clip

Heavy Duty Cast Cable saddle

Material - Gunmetal / Brass

These are used with 8 mm conductor or for supporting Air Terminals when used in conjuction with wall mounted Air Terminal base.

For Solid Conductor For Stranded Conductor
Size MM Product Code Size mm2 Product Code
8 ADCC - 8 50 ADCC - 50
10 ADCC - 10 70 ADCC - 70
12 ADCC - 12 95 ADCC - 95
16 ADCC - 16 - -
Heavy Duty Cast Cable saddle

Test Clamp

Material - Gunmetal / Brass

Used in overlapping joints

Conductor Size mm2 Product Code
50 ATC - 50
70 ATC - 70
95 ATC - 95
Test Clamp

Square Conductor Clamp

Material - Gunmetal / Brass / Aluminum

Suitable for 4 way connection, straight, through or tee joints for Round Conductors.

Conductor Size mm2 Product Code
35 ASCC - 35
50 ASCC - 50
70 ASCC - 70
95 ASCC - 95
Square Conductor Clamp

Tee Clamp

Material Gunmetal / Brass

These are used for forming & bonding Tee joint for conductor.

Conductor Dia. mm Product Code
8 Cu ATEC - 8C
8 Al ATEC - 8A
Tee Clamp

Side Mounting Rod Bracket

Material - Gunmetal / Brass

Above Bracket provides a 75 mm projection from the face of a wall. Manufactured either in Gunmetal or Brass.

Air Rod Dia. mm Product Code
16 ASM -10
20 ASM -10
Side Mounting Rod Bracket

Jointing Clamp

Material - Gunmetal / Brass

These are used for forming straight through joints.

Conductor Dia. mm Product Code
8 Cu AJC - 8C
8 Al AJC - 8A
Jointing Clamp

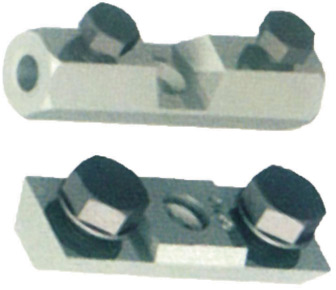

Universal Cable Connector

Material - Stainless Steel / Brass

These are used for connecting Cable Conductors.

Conductor Size mm Product Code
70 AUDC - 70
95 AUDC - 95
120 AUDC - 120
Universal Cable Connector

Re-Bar Clamp

Material - Gunmetal / Brass

Used for bonding to handrails, re-inforcing bars, pipes etc.

Conductor Dia. Pipe Dia. Conductor Material Product Code
8mm 8-18mm Copper ARBC - 818
8mm 8-38mm Copper ARBC - 838
Re-Bar Clamp

Metalwork Bonding Clamp

Material

Product Code - AMWBC - 1

Used for bonding circular conductors to metal surfaces. These can be fixed to the metal surface by using bolts & nuts or by welding onto the metal surface.

Metalwork Bonding Clamp

Metalwork Bond

Material - Gunmetal / Brass

Used for connecting to all types of metal structures upto 13mm thickness.

Conductor Size Product Code
8mm2 AMWB - 8
Metalwork Bond

Straight Setscrew type cable socket

Material - Gunmetal / Brass

Used for Bonding Copper & Aluminum Conductors to steel work.

Conductor Size Product Code
8mm2 ASCS - 8
Straight Setscrew type cable socket

Air Terminal Base - Cable

Material - Gunmetal / Brass

Used for mounting of air rods either horizontally or vertically..

Position Conductor Dia. Thread Dia. Product Code
Vertical 8 mm 10 mm ATBV - 810
Horizontal 8 mm 10 mm ATBH - 810
Air Terminal Base - Cable

Flat Saddle - C

Material - Gunmetal

Used for supporting taper pointed or blunt air rods with circular conductors on flat surface.

Rod Length (mm) Rod Dia. (mm) Thread Dia. Product Code
50 15 16 AFSC - 50
70 15 16 AFSC - 70
95 15 16 AFSC - 95
Flat Saddle - C

Anti - Vandal Conductor Guard

Length mm Product Code
3000 ACG - 30
Anti - Vandal Conductor Guard

Brass Comb Clamp

Material - Brass / Copper Alloy

Conductors mm Type Product Code
3 - 5 1 Bolt ACMP - 1
6 - 8 1 Bolt ACMP - 2
9 - 12 1 Bolt ACMP - 3
3 - 5 2 Bolt ACMP - 4
6 - 8 2 Bolt ACMP - 5
9 - 12 2 Bolt ACMP - 6
12 - 14 2 Bolt ACMP - 7
14 - 16 2 Bolt ACMP - 8
Brass Comb Clamp

Nero Clip - Snap On Holder

(for attaching wire to wall)

Snap - on mechanism & Base Made of Metal

Type AFL: Fixed conductor holder.

Type AIL: Loose conductor holder.

Specification Snap - on Mech / Base Dia. in mm Size mm Product Code
Stainless Steel / Stainless Steel 7.0 8.0 Type AFL ANC - 1
Stainless Steel / Stainless Steel 7.0 8.0 Type AIL ANC - 2
Stainless Steel Coppered / Copper 7.0 8.0 Type AFL ANC - 3
Stainless Steel Coppered / Copper 7.0 8.0 Type AIL ANC - 4
Stainless Steel / Stainless Steel M6 8.0 Type AFL ANC - 5
Stainless Steel / Stainless Steel M6 8.0 Type AIL ANC - 6
Stainless Steel Coppered / Copper M6 8.0 Type AFL ANC - 7
Stainless Steel Coppered / Copper M6 8.0 Type AIL ANC - 8
Nero Clip - Snap On Holder

Universal Clamp

Universal use as T, Cross, Parallel & Thrust Clamp

Specification Product Code
Galvanized Steel AUC - 23
Stainless Steel AUC - 24
Copper AUC - 25
Universal Clamp

Saddle Clamp With Base

Material - Brass / Copper / Aluminium

Sizes Type Product Code
8.0 - 10.0 A ANT - 019
16.0 A ANT - 020
7.0 B ASC - 003
7.0 B ASC - 004
Saddle Clamp With Base

Clamp Connector - Straight

Material - Brass

Size Rod Cable Product Code
Min. Max. Min. Max.
10/50 4 10 10 70 ACCS - 70
25/120 6 14 16 120 ACCS - 120
70/150 10 16 25 150 ACCS - 150
150/240 14 20 120 240 ACCS - 240
240/400 20 24 240 400 ACCS - 400
Clamp Connector - Straight

Clamp Connector - 90

Material - Brass

Size Rod Cable Product Code
Min. Max. Min. Max.
10/50 4 10 10 70 ACCD - 70
25/120 6 14 16 120 ACCD - 120
Clamp Connector - 90

Mechanical Connector for Copper Cable - Straight

Material - Brass

Size Rod Cable Product Code
Min. Max. Min. Max.
10/50 4 10 10 70 AMCS - 70
25/120 6 14 16 120 AMCS - 120
70/150 10 16 25 150 AMCS - 150
Mechanical Connector for Copper Cable - Straight

Mechanical Connector for Copper Cable - 90

Size Rod Cable Product Code
Min. Max. Min. Max.
10/50 4 10 10 70 AMCD - 70
25/120 6 14 16 120 AMCD - 120
70/150 10 16 25 150 AMCD - 150
Mechanical Connector for Copper Cable - 90

Roof Conductor Holder With Niro - clip

(For attaching wire to wall)

Fits all the sizes, universally adjustable wire attachment.

Type AFL: Fixed conductor holder

Type AIL: Loose conductor holder.

Specification Holder Sizes in mm Product Code
Steel / Galvanised / Varnished Niro - Clip 8.0 Type AFL ANC - 011
Steel / Galvanised / Varnished Niro - Clip 8.0 Type AIL ANC - 012
Steel / Galvanised / Varnished Niro - Clip 8.0 Type AFL ANC - 013
Steel / Galvanised / Varnished Niro - Clip 8.0 Type AIL ANC - 014
Stainless steel Stainless Steel 8.0 Type AFL AURCH - 01
Copper Stainless Steel 8.0 Type AIL AURCH - 02
Stainless Steel Plastic 8.0 Type AFL AURCH - 03
Copper Plastic 8.0 Type AIL AURCH - 04
Roof Conductor Holder With Niro - clip

Puddle Flange

Material - Copper / Aluminium

For taking Lightning Conductors through roofs etc.

Conductor Product Code
Copper APEC - 01
Aluminium >APFA - 02
Puddle Flange

Floor Ground Receptacles

Material - Bronze / Copper Alloy.

Floor Ground Receptacle of Heavy Duty Construction. Receptacle furnished for all size Ground Rods, either plain or threaded.

Size Product Code
1/2” AFGR - 12
5/8” AFGR - 16
3/4” AFGR - 20
Floor Ground Receptacles

Equipotential Bonding Bars

Equipotential Bonding Bar with Plastic & Base suitable for connecting.

Specifications

  • With Plastic Cover & Base
  • 1 Tape Terminal 30 x 5mm or Conductors 8 - 10mm2.
  • 7 x one or multi - wired conductors to 6mm2 to 25mm2.
Equipotential Bonding Bars
