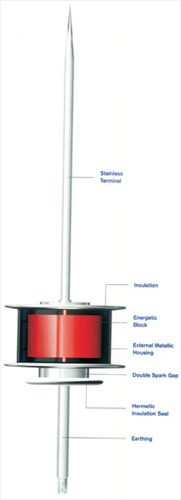

EC-SAT / T Series

  EC-SAT 250 EC-SAT 500 EC-SAT 750 EC-SAT 1000
Manufacturing Material Stainless Steel AISI 316 (18/8/2) Internat. Norm
Stainless Steel UNE 36-016-75 Spanish norm
Insulating Poiletaflouretilence
Isolation With Capsule in resin
Electric Generator Transformer Generates high voltage impulses
Electronics Energetic block in a capsule
Spark Gap Double (normal and controlled atmosphere)
Number of Spark Gaps 2 2 2 2
Faradise Protection With metallic external housing
Total Length (mm) 800 800 800 800
Energetic Block Length (mm) 100 110 114 118
Total Diameter (mm) 170 170 170 170
Weight (kg) 4.5 4.5 4.8 5
Supply Energy It doesn’t need external supply conventional.
Only the atmosphere gradient.
EC-SAT Symbol Electro Condenser with triggering device
Current Test 100KA WAVE 10/350 µs

*Fields marked in Red are same for both EC-SAT and “T” SERIES

  TA TT TO TI TL
Number of Spark Gaps 2 2 2 2 2
Total Length (mm) 625 625 625 625 625
Energetic Block Length (mm) 75 75 80 80 90
Total Diameter (mm) 148 148 148 148 148
Weight (kg) 4.2 4.2 4.2 4.2 4.2
Norms UNE – 21185 / 21186 / 21308
NF – 17102 / TELEFONICA / CEI - 1024
